ArionUI.Rendering.Skia 0.1.0-preview.1

Virtualization and rendering engine for .NET data UIs

Millions of rows in freely composable views — GPU-rendered, smooth-scrolling, without creating one UI control per row. The same engine renders the same data as a table (sort / filter / editing), a card board and a tree, switchable live, with identical behaviour on WPF and Avalonia.

Early preview. The API is still moving; breaking changes are expected between preview versions.

Packages in this zone (open source, Apache-2.0)

Grouping, pivot, charts, timeline, planning matrix, conditional formatting, layout persistence and export are separate packages and not part of this zone.

Getting started

var view = new GridView<Order>(
    [
        Column.Text<Order>("Customer", o => o.Customer).WithKey("customer").WithWidth(160),
        TypedColumn.Number<Order>("Amount", o => o.Amount).WithWidth(90),
    ],
    new ListItemsSource<Order>(orders),
    rowHeight: 24)
    .AsDataGrid();

// Avalonia or WPF — the control is the same type name on both hosts:
var grid = new ArionGrid(view);

Everything an application needs sits on one facade, grid.Api — state, selection, editing, commands, events, panes and layout. It is the same surface on both hosts.

Language: English by default; ArionUiText.UseGermanTexts() for German (core and modules).

Avalonia on Windows: let Windows hand the picture through

For grids that update continuously, put Avalonia's low-latency swap chain first and keep its default chain behind it:

AppBuilder.Configure<App>()
    .UsePlatformDetect()
    .With(new Win32PlatformOptions
    {
        CompositionMode =
        [
            Win32CompositionMode.LowLatencyDxgiSwapChain,
            Win32CompositionMode.WinUIComposition,
            Win32CompositionMode.DirectComposition,
            Win32CompositionMode.RedirectionSurface,
        ],
    });

It needs ANGLE rendering (Avalonia's default) and a Direct3D device of feature level 11_3 or higher; where that is missing, Avalonia takes the next mode in the list. Avalonia picks the mode once for the whole process, so with LowLatency every window of the application loses transparency, acrylic and mica blur. An application that needs those keeps WinUIComposition first. Measured on a scene with a million live figures (Intel integrated GPU): the desktop window manager's share of the GPU dropped from 16 % to 0 %, because Windows shows the swap chain directly instead of composing the window every frame.

LowLatency windows have no redirection bitmap: PrintWindow, and UI test tools built on it, capture them white. A copy of the screen region shows them, and so does TryWriteFramePng, which reads the grid's own frame.

Avalonia on Windows: the render loop on the window's display

Avalonia's render loop waits for the vertical blank of the display with the highest refresh rate, whichever window it renders. With displays of different rates - a 60 Hz display beside a 59.95 Hz one is common - a window on the other display drifts through those blanks: every 20 seconds or so its frames are presented late for a moment, and anything that moves stutters. ArionGrid therefore paces the render loop by the blanks of the display the active window with a grid is on, ticking on each blank: frames come evenly, about a frame later than ideal pacing would show them - smooth rather than stuttering. Where that cannot be had, Avalonia's own timer paces as before; so it does under native AOT, where the timer cannot be put in. To keep Avalonia's timer, set ArionGrid.PaceRenderLoopByDisplay = false before the first grid is shown, or set the environment variable ARION_AVALONIA_VBLANK=0.

Startup: publish with ReadyToRun

ArionUI's assemblies ship precompiled for win-x64 (ReadyToRun, the IL stays in them; other platforms compile it on first use as before). Avalonia's do not: on the first start the JIT still compiles what a window touches of them. Publishing the application with ReadyToRun precompiles those too:

<PropertyGroup>
  <PublishReadyToRun>true</PublishReadyToRun>
</PropertyGroup>

It takes effect when you publish for a runtime (dotnet publish -r win-x64), not on dotnet build or dotnet run. In the showcase (framework-dependent, win-x64) the time from process start to the first frame went from 3.2 s to 1.5 s; ArionUI's and Avalonia's assemblies grew by about 18 MB. A composite image (PublishReadyToRunComposite) gained no more than a few tens of milliseconds on top and needs a self-contained publish.

Startup: the shader cache

The grid's GPU cells draw with one large shader program. Under ANGLE its first compile takes several hundred milliseconds; the cells draw on the CPU meanwhile (the same pixels), so no frame waits for it. The linked program is then kept as the driver's binary in %LOCALAPPDATA%\ArionUI\ShaderCache, and later starts load it in a few milliseconds. An entry belongs to one GPU, driver and ANGLE build: after a driver update a new entry is written, an entry the driver no longer takes is deleted and the program compiled again, and entries not used for 30 days are removed. To keep nothing on disk, set the environment variable ARION_SHADER_CACHE=0, or set ShaderBinaryCache.Default = null (or a cache with a folder of your choosing) before the first grid is shown.

Live data: smoothing with LivePlayback

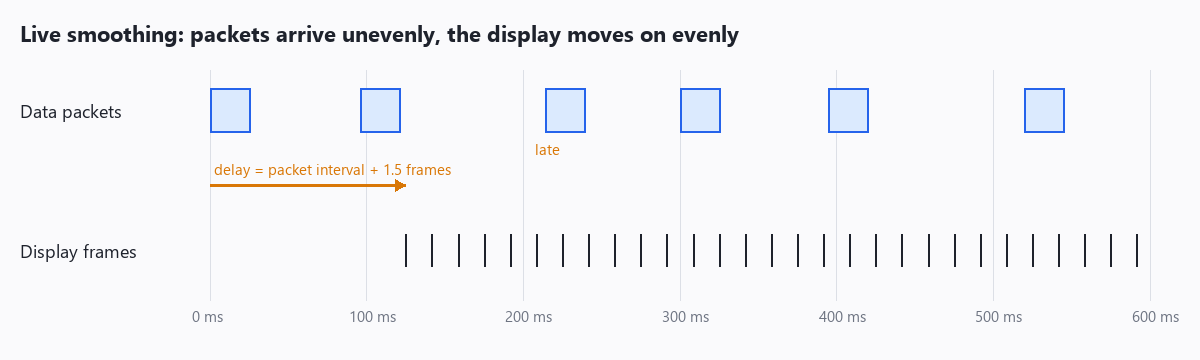

Live readings rarely arrive evenly: a device or a socket delivers them in packets, and a packet is now and then a little late. Drawn as they arrive, a trace jumps by a packet at a time and stutters at every late one. A LiveSeries keeps the readings with their times, and a LivePlayback shows them a little behind the newest one, moving on by exactly the display time of each frame. A row stays at one moment: the trace (Read), the value beside it (ValueOf) and the lowest and highest over the shown window (RangeOf) are all read at the playback's position.

The cost is the delay: one packet interval plus one and a half frames, measured by the playback itself (about 60 ms for 30 packets a second on a 60 Hz display; DelayFor tells the figure, and ArionUiText.LiveSmoothing says it in words). Turn it off with Delay = TimeSpan.Zero where every millisecond counts more than an even picture, such as when an operator steers by the trace in real time: then every frame shows the newest reading, and the trace moves by whole packets.

var samples = new LiveSeries(capacity: 2048, sampleRate: 240);   // the source appends, any thread
var playback = new LivePlayback();                               // Delay: null = measured, Zero = off

grid.Api.Timing.Every(TimeSpan.FromMilliseconds(1), elapsed =>    // once per display frame
{
    playback.Advance(elapsed, samples);
    int n = playback.Read(samples, trace, out double shift);      // the trace and how far it slid
    double level = playback.ValueOf(samples);                     // the same moment
    var (min, max) = playback.RangeOf(samples, trace.Length - 1);
});

Breaking

• The guide of a sparkline follows the pointer by default: Column.Sparkline and Cell.Sparkline default to interpolate: true, SparklineEl.Interpolate to true. A default parameter is compiled into the caller, so code built against an older package keeps snapping until it is recompiled; pass interpolate: false to keep snapping on purpose.
• SparklineEl.Curve has a set accessor instead of init (the user switches it from the menu): recompile code that sets it.
• IGridViewOps has two new members, LineCurveOf and SetLineCurve; an own implementation of the interface has to add them.
• ArionIcons.CheckBox takes five arguments: the accent colour of the box and its mark comes last ((surface, rect, state, isHot, accent)). A replacement icon adds the parameter; a caller passes Palette.Accent for the theme's colour.
• All texts are English by default — menus, dialogs, screen-reader sentences, the empty-state title (StandardEmptyStateTitle is "No results"), the pivot grand total ("Total") and the week caption ("CW 20"). Call ArionUiText.UseGermanTexts() once at start-up (or context.UseGermanTexts() per grid) for the previous German texts; it switches the module catalogues (ChartTexts, PivotTexts, ...) as well.
• Dates follow the culture instead of a fixed "dd.MM.yyyy": TypedColumn.Date (format is now string?) and AutoColumnOptions.DateFormat default to the culture's short date, the timeline and planning captions to patterns derived from it (DatePatterns). de-DE reads as before; pass a format to keep a fixed one.

License: Apache-2.0; every package carries the NOTICE file. ArionUI.Rendering.Skia embeds JetBrains Mono (SIL OFL 1.1) and ships its licence text under THIRD-PARTY/. Source and issues: https://github.com/ArionUI/ArionUI.
