Ava3DControl 12.1.0-preview.14

Ava3DControl

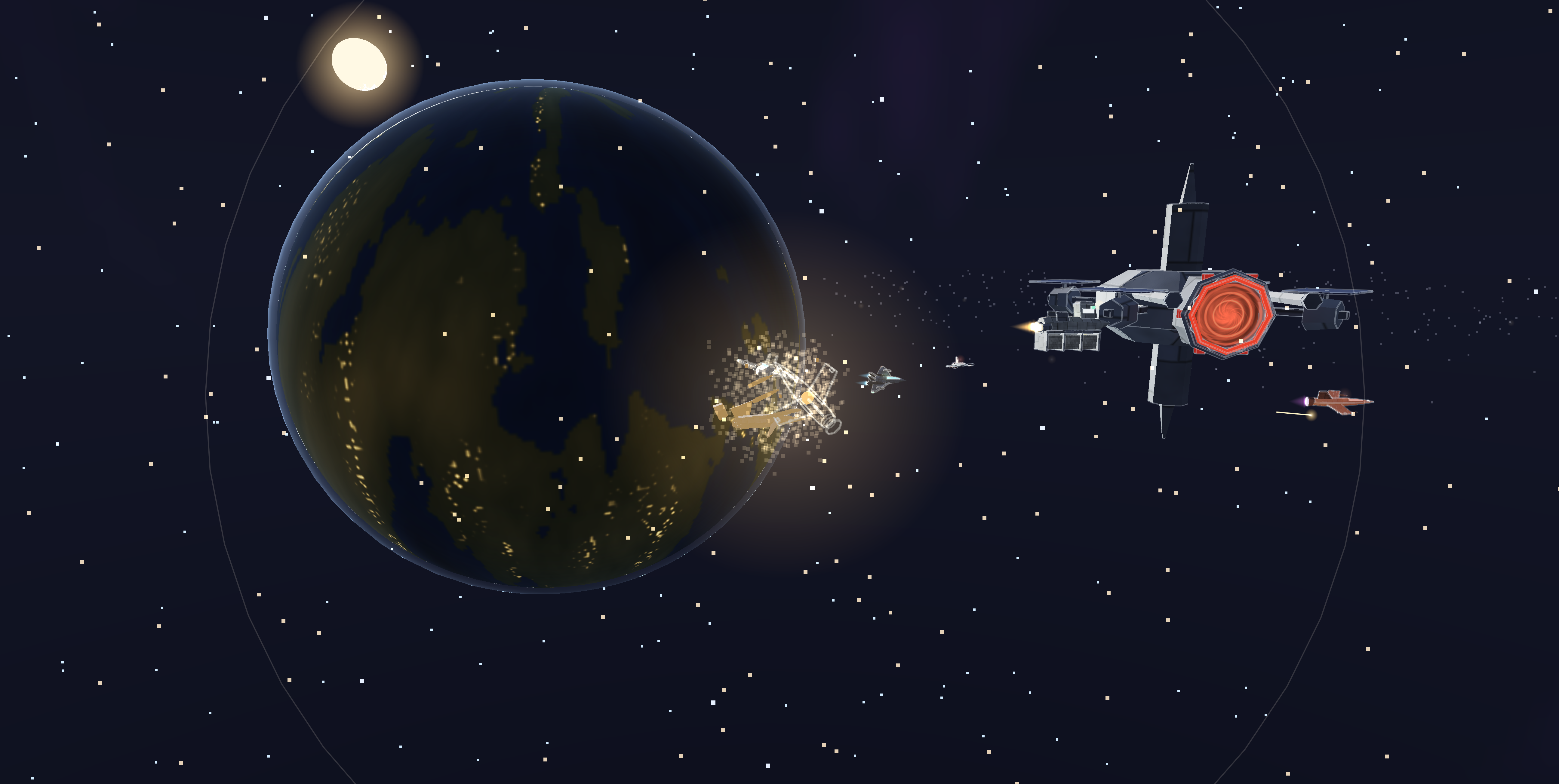

A 3D viewport control for Avalonia. Metallic-roughness PBR, shadows, HDR, skeletal animation, glTF loading and triangle-accurate picking, in one binary that renders through Metal, Vulkan, OpenGL, WebGL 2 or the CPU — chosen at runtime from whatever the host can offer.

Preview release. 12.1.0-preview.14 is a beta — pin the exact version. The major and minor track the Avalonia release this is built against.

Install

dotnet add package Ava3DControl --prerelease

Vulkan on a Mac needs MoltenVK, which is what Vulkan is there. Add Ava3DControl.MoltenVK to have it travel with your application, or install it yourself with brew install molten-vk. Metal is the default on a Mac and needs neither.

Use

<Window xmlns="https://github.com/avaloniaui"
        xmlns:a3d="using:Ava3D">
    <a3d:Ava3DView x:Name="View" />
</Window>

var scene = new Scene();

scene.Children.Add(new MeshNode(
    Primitives.Sphere(0.5f),
    new Material
    {
        BaseColor = new Vector4(1f, 0.77f, 0.34f, 1f),
        Metallic  = 1f,
        Roughness = 0.25f
    }));

View.Scene = scene;

That is the whole thing. The camera frames the scene by itself; orbit, pan and zoom are already wired up.

Features

• Metallic-roughness PBR with the full glTF 2.0 map set.
• Image-based lighting from an ordinary or a Radiance HDR image, with reflections of their own for up to two rooms.
• Linear HDR, with bloom that follows real brightness, exposure and white balance.
• Picks its renderer at runtime: Metal, Vulkan, OpenGL, WebGL 2, or the CPU where there is no GPU at all.
• Reports what each renderer supports, and why, before you ship rather than after — and how long its own render took, beside the interval between frames.
• Sprites, lines and point clouds, ordered together with the triangles.
• Depth bias, so a line or a decal drawn on a surface stops fighting with it.
• As many lights as a scene wants — directional, point and spot, with three.js-compatible falloff — sixteen everywhere, and usually far more.
• Shadows from up to two of them at once, on every renderer including the CPU, and contact occlusion where objects meet the floor and walls.
• Loads binary glTF: the node tree, the skeletons, the blend shapes, the animations, and a UV set and transform for each texture.
• Plays named animation states with a crossfade between them, and returns a gesture to the state it interrupted.
• Skinning and morph targets, on every renderer including the CPU, with picking and framing that follow the pose.
• Picks against triangles, so clicking behaves the same on every renderer.
• Ordinary Avalonia controls placed in the scene — nameplates, callouts, markers — that follow the camera.
• Text in the scene, and textures computed by a few lines of SkSL for screens, signs and water.
• Streams textures, so a texture-heavy scene appears immediately.
• Primitives whole or in part — domes, troughs, curved sections — and meshes that can be faceted and smoothed again.
• Geometry that can move, re-uploaded without reallocating, and meshes from signed-distance functions.
• Maths for paths, easing, rotation and scattering.

Around 120 fps on Metal, Vulkan, OpenGL and WebGL 2 for the demo's stress scene — 128,002 triangles in 126 draws. The CPU fallback manages 55 on a sixteen-core desktop, rasterising against its own depth buffer across every core, which is the honest cost of having no GPU.

Documentation

• 3D Guide — the book, from nothing to a working scene. Start here if 3D is new.
• API reference — every public type.
• Live demo — fifty-eight scenes in a browser tab.
• Release notes — version history.

Limits

• Two lights cast shadows at most, and there are no cascades, so one map covers each light's casting geometry.
• Contact occlusion works from what is on screen, so it cannot see anything outside the frame.
• Linear HDR ends in an ordinary display image; it does not drive an HDR monitor.
• Skinning and morph targets are solved on the CPU, so a moving character re-uploads its vertices.
• Morph targets carry positions only; normals are recomputed rather than read.
• Transparency is ordered per object, not per triangle.
• Binary .glb only.
• The CPU fallback lights per vertex, samples only the base-colour map, and does not anti-alias its edges.
• Browser builds need WasmBuildNative set to true, or the runtime aborts on the first GL call.
• Android builds but has not been run on a device.
• OpenGL on iOS renders nothing, which is an upstream Avalonia defect. Metal is used there instead.
• The Vulkan renderer samples textures without anisotropic filtering, and has not yet been run on a discrete card.
• Vulkan on macOS needs MoltenVK on the machine, and is slower than the Metal renderer because it runs on it.
• Vulkan is not available in the browser, which offers WebGL 2 as its only graphics API.

Licence

Freeware, commercial use included: no fee, no seat count, no attribution required in your application. Resale of the library itself is not permitted. See LICENSE.md in the package for the exact terms, and THIRD-PARTY-NOTICES.md for the components it builds on.

Feedback

GitHub Issues, or the Telegram topic for anything shorter.
