EdiFabric.Native.X12 1.1.1.1

ediFabric Native X12 - C# bindings

ediFabric Native is a self-contained, high-performance X12 EDI native shared library. It converts X12 EDI to JSON (and back), validates transaction sets, and generates acknowledgments — callable from any language with a C foreign-function interface (C, C++, Rust, Go, Python, Node.js, Java/JNA, .NET, …). No .NET runtime, JVM, or other dependency is required on the target machine.

C# P/Invoke bindings for ediFabric Native.

Install

dotnet add package EdiFabric.Native.X12

The package targets .NET 8 or later and bundles the ediFabric Native library for Windows x64, Linux x64 and arm64 (glibc 2.34 or later), and macOS arm64 (12 or later). .NET copies the library for your platform to the build output, under runtimes/<rid>/native/ or, when you build or publish for a specific runtime, next to your application, and the bindings load it from there. A library you set in EdiFabricX12.LibraryPath or EDIFABRIC_X12_LIB takes precedence over the bundled one.

Requirements

• .NET 10.0 SDK or later to build this repository; the package runs on .NET 8 or later
• 64-bit Windows, Linux, or macOS
• The native library for your platform (bundled in the NuGet package; download it when you run the example from a clone):

1. Sign up free for Community to get an evaluation serial key. Community never expires, requires no credit card, and is for non-production use. The first 14 days after you subscribe have unlimited operations, then the quota is 250 per day. To extend the unlimited period, ask through the support portal or at support@edifabric.com. After signup, retrieve your serial from Your Account.
2. Download the ediFabric Native library.

Plus your model files (per transaction set) and a map file that tells the engine where to find them. See Model map for details.

Getting started

Sign up free for Community at edifabric.com/pricing to get an evaluation serial key, then download the library from here. Put the native library in the repository root, then run the walkthrough with your serial:

cd EdiFabricNativeExample
dotnet run -- --serial YOUR_SERIAL

The project copies the library next to the executable on build. It authorizes with your Community (or paid) serial, loads the model map, and calls every function in the ABI, printing what each one returns.

======================================================================
Parse: parse (mode 2, JSON + validation report)
======================================================================
  1754 bytes total, validation starts at offset 1708
  validation -> {"errors":[],"errors_count":0,"data_count":10}

Options:

dotnet run -- --serial YOUR_SERIAL     # Community or paid serial (required)
dotnet run -- --lib /opt/edifabric     # library file or the folder holding it

You can also set EDIFABRIC_SERIAL instead of passing --serial.

The library is resolved through a DllImportResolver that tries EdiFabricX12.LibraryPath, then EDIFABRIC_X12_LIB, then the application directory, the package's runtimes/<rid>/native/ folder under it, and a few levels above it, before falling back to the default .NET probing logic. The serial comes from --serial, then EDIFABRIC_SERIAL.

All strings and payloads cross the boundary as UTF‑8 byte buffers (pointer + length). Every function returns 0 on success or a non-zero error code.

Usage

Add the EdiFabric.Native.X12 package (see Install). Or copy NativeMethods.cs and EdiFabricX12.cs into your project and enable unsafe blocks:

<PropertyGroup>
  <AllowUnsafeBlocks>true</AllowUnsafeBlocks>
</PropertyGroup>

using EdiFabric.Native.X12;

const string serial = "your-serial";   // from your Community or paid plan

EdiFabricX12.Load();                    // optional, any call loads on demand
EdiFabricX12.SetSerial(serial);         // Community: SetSerial. Developer: prefer EnsureToken. Enterprise: prefer SetToken.
EdiFabricX12.SetMap($$"""{"default": "{{serial}}", "maps": {}}""");

var edi = File.ReadAllBytes("837p.txt");
var result = EdiFabricX12.Parse(edi);
Console.WriteLine(result.Transactions);

Parse accepts a string or a ReadOnlySpan<byte>, so EDI read straight from disk needs no intermediate decoding.

Validation and acknowledgments

ParseResult splits the native output for you: Transactions is the JSON, and Report is the validation and acknowledgment section that follows it.

var config = """
{
  "validate": { "snip_level": 2, "max_errors": 0 },
  "ack": { "gen997": false, "supress_ta1": false }
}
""";

var result = EdiFabricX12.Parse(edi, ParseMode.JsonValidateAck, config);
using var report = JsonDocument.Parse(result.Report);
Console.WriteLine(report.RootElement.GetProperty("errors_count").GetInt32());

Streaming large interchanges

EnumerateSplit streams one transaction set (or repeating loop) at a time with flat memory use. segment_id must be ST or the first segment of a repeating loop.

var config = """{ "split": { "segment_id": "LX", "segment_depth": 6, "loop_id": "2400" } }""";

foreach (var part in EdiFabricX12.EnumerateSplit(edi, ParseMode.Json, config))
    Handle(Encoding.UTF8.GetString(part.Payload));

EnumerateMerge streams a full interchange JSON document back out one segment at a time:

using var output = File.Create("out.edi");
foreach (var segment in EdiFabricX12.EnumerateMerge(result.Transactions))
{
    output.Write(segment);
    output.Write("\r\n"u8);
}

Both wrap the underlying StartSplit/Split/GetResult and StartMerge/Merge/GetResult sequences, which you can also drive directly.

Building EDI

var edi = EdiFabricX12.Build(result.Transactions, postfix: "\r\n");   // null for compact output

API reference

Conventions used by every function:

• Returns int: 0 = success, non-zero = error code.
• Inputs are UTF‑8 byte* + int length.
• Output functions use grow-and-retry: if the buffer is too small the call returns 1 (InsufficientCapacity) and writes the required size into the length out-parameter; reallocate and call again.
• Exceptions never cross the boundary.

Every wrapper throws EdiFabricException when the native call returns a non-zero status. Buffer growth (InsufficientCapacity) is retried automatically.

GetError frees the native string for you. Use EdiFabricX12.Raw.GetError with FreeError only when you want to own the unmanaged memory yourself. Builds that do not export free_error fall back to Marshal.FreeHGlobal.

Licensing

// Community: authorize per process against the license server
EdiFabricX12.SetSerial(serial);

// Developer (recommended): 1-day built-in cache; refreshes if the token expires within N seconds
EdiFabricX12.EnsureToken(serial, seconds: 3600);
Console.WriteLine(EdiFabricX12.GetTokenExpiration());   // DateTime, or null when unset

// Developer (also works): same as Community, online check per process
EdiFabricX12.SetSerial(serial);

// Enterprise (recommended): fetch / validate / set an offline token yourself
var token = EdiFabricX12.GetToken(serial);
EdiFabricX12.ValidateToken(token);
EdiFabricX12.SetToken(token);

Model map

SetMap tells the engine where to find transaction-set models. Keys are message:version. Set default to your serial to resolve unmapped transaction sets through the online spec service, or leave it null (or "") and map everything locally.

The example builds that JSON at runtime instead of hard-coding paths. Online fallback is a JsonObject with default set to your serial:

var map = new JsonObject
{
    ["default"] = serial,
    ["maps"] = new JsonObject(),
};

EdiFabricX12.SetMap(map.ToJsonString());

For local models, load a map file and rewrite each entry's location to the folder that actually holds the JSON files (see DemoSetLocalMap in EdiFabricNativeExample/Program.cs):

var mapLocation = Path.GetFullPath("map");
var localMap = JsonNode.Parse(File.ReadAllText(Path.Combine(mapLocation, "map.json")))!.AsObject();
var maps = localMap["maps"]!.AsObject();
foreach (var entry in maps)
    entry.Value!["location"] = mapLocation;

EdiFabricX12.SetMap(localMap.ToJsonString());

map.json lists each transaction set; location is filled in at runtime so the same file works from any working directory:

{
  "default": "",
  "maps": {
    "837:005010X222A1": { "type": 1, "name": "model837P.json", "location": "" },
    "834:005010X220A1": { "type": 1, "name": "model834.json",  "location": "" }
  }
}

You can also mix both: keep default as your serial and add local entries under maps for the transaction sets you ship on disk.

All X12 transactions, such as 837P, 834 and 850, are represented as ediFabric Native JSON models. The models are the same on every plan, Community or paid.

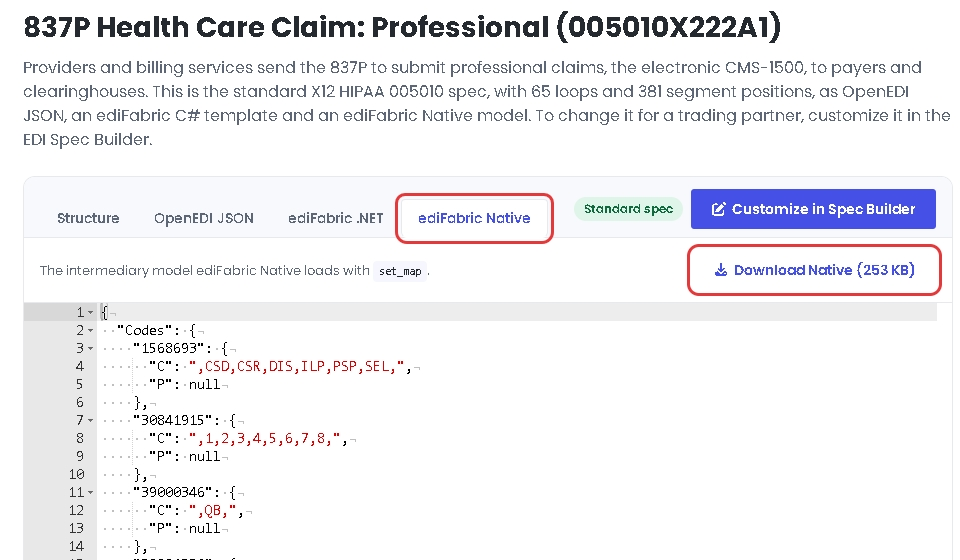

Standard models come from the EDI spec library, and you can download them without an account. Open the transaction, for example 837P, and on the ediFabric Native tab select Download Native.

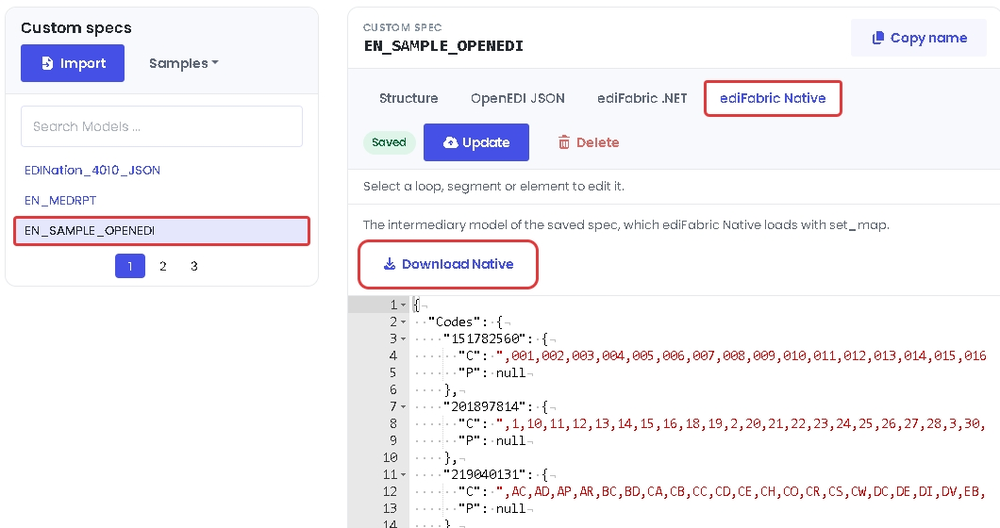

Custom models come from the EDI Spec Builder. When a trading partner changes the standard, open the transaction in the EDI spec library and select Customize in Spec Builder, or import your own OpenEDI file. Edit the OpenEDI schema until it matches the partner's guide and select Update. Then, on the ediFabric Native tab, select Download Native.

Save the downloaded file where the map can name it, and add it to maps under its message:version key, for example 837:005010X222A1. The file is the compiled layout the engine loads, not the OpenEDI schema. To change a model, edit the spec in the EDI Spec Builder and download it again. See EDI models and OpenEDI format.

Configuration JSON

All JSON uses snake_case keys and is case-insensitive.

ParseConfig (parse)

{
  "validate": { "regex": null, "date_format": null, "time_format": null,
                "skip_seq_count": false, "skip_hl_seq": false,
                "snip_level": 0, "max_errors": 0 },
  "ack":      { "supress_ta1": false, "ak901p": false,
                "gen_for_valid": false, "gen997": false }
}

• validate — applied when mode ≥ 2; snip_level is 1–4.
• ack — applied when mode == 3.

All sections are optional for parse.

SplitConfig (start_split)

{
  "split":    { "segment_id": "ST", "segment_depth": 0, "loop_id": null }
}

• split — required for start_split.

Splitting is possible for the following boundaries:

• Transaction - for files that contain batches of transactions.
• Repeating loop - for files that contain batches of loops, such as order lines, claims or benefit enrollments.

The splitter must be configured as follows:

• segment_id — the name of the segment to split by. It must be either ST or the first segment in the repeatable loop (Mandatory).
• segment_depth — the depth of the segment in the model hierarchy (Mandatory).
• loop_id — the name of the loop for the segment specified in segment_id (Optional).

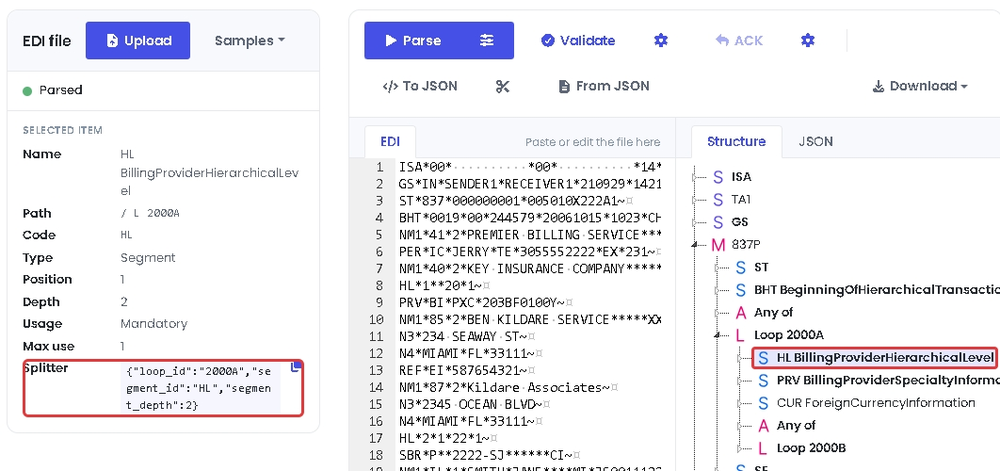

The values for the splitter are in EdiNation, the free X12 editor. Load a file, select Parse, and select the first segment of the loop in the Structure tab. For example, to split an 837P by loop 2000A, load the 837P sample from Samples and select the HL segment in loop 2000A. Under Selected item, segment_id is Code, loop_id is the last item in Path, and segment_depth is Depth.

The easiest way to get the splitter configuration is to select the copy button next to Splitter, which copies the three values as JSON. Paste them as the value of split.

Threading

The library holds process-global state (model map, active split reader, active merge writer, last result, license) behind an internal lock. Parse and Build are independent per call, but each split or merge sequence must run to completion without another split or merge interleaving from a different thread.

Error codes

0 is success and 1 means the output buffer was too small. Library-level codes are exposed as EdiFabricErrorCode, and GetError(code) returns the message. Validation codes (elements, segments, transaction sets, groups, and interchanges) appear in the parse report when mode ≥ 2.

Error 639 means the Community (evaluation) daily quota was exceeded. Upgrade your plan at edifabric.com/pricing if you wish to continue.

Parser and library

Troubleshooting

DllNotFoundException — the library is not on any searched path. Set EdiFabricX12.LibraryPath before the first call, or set EDIFABRIC_X12_LIB.

Error 615 on parse — call SetMap before parsing or splitting. ClearCache resets the map, so reload it afterwards.

Error 628 / 635 on parse — authorize first: SetSerial on Community, EnsureToken (or SetSerial) on Developer, or SetToken on Enterprise.

Error 633 on ensure_token / get_token — the plan's machine quota is used up. Contact support.

Error 639 — the Community (evaluation) daily quota was exceeded. Wait until the next day, or upgrade your plan if you wish to continue.
