Modernised .NET 10 fork of atdl4net, the open-source .NET reference implementation of FIXatdl v1.1. All credit must go to the original author of atdl4net, Steve Wilkinson (and contributors), for the work that went into the original. This is simply a modernisation and facelift built atop their efforts. This version, and its associated adapters, is maintained by FixPortal and you can see it in action in their FIXatdl Inspector.

What this is

A headless library for parsing, validating, and emitting FIX-tag values from FIXatdl v1.1 strategy XML documents. It targets .NET 10 and is consumed as a NuGet package (FixPortal.FixAtdl).

Want an editable form, not a parser?

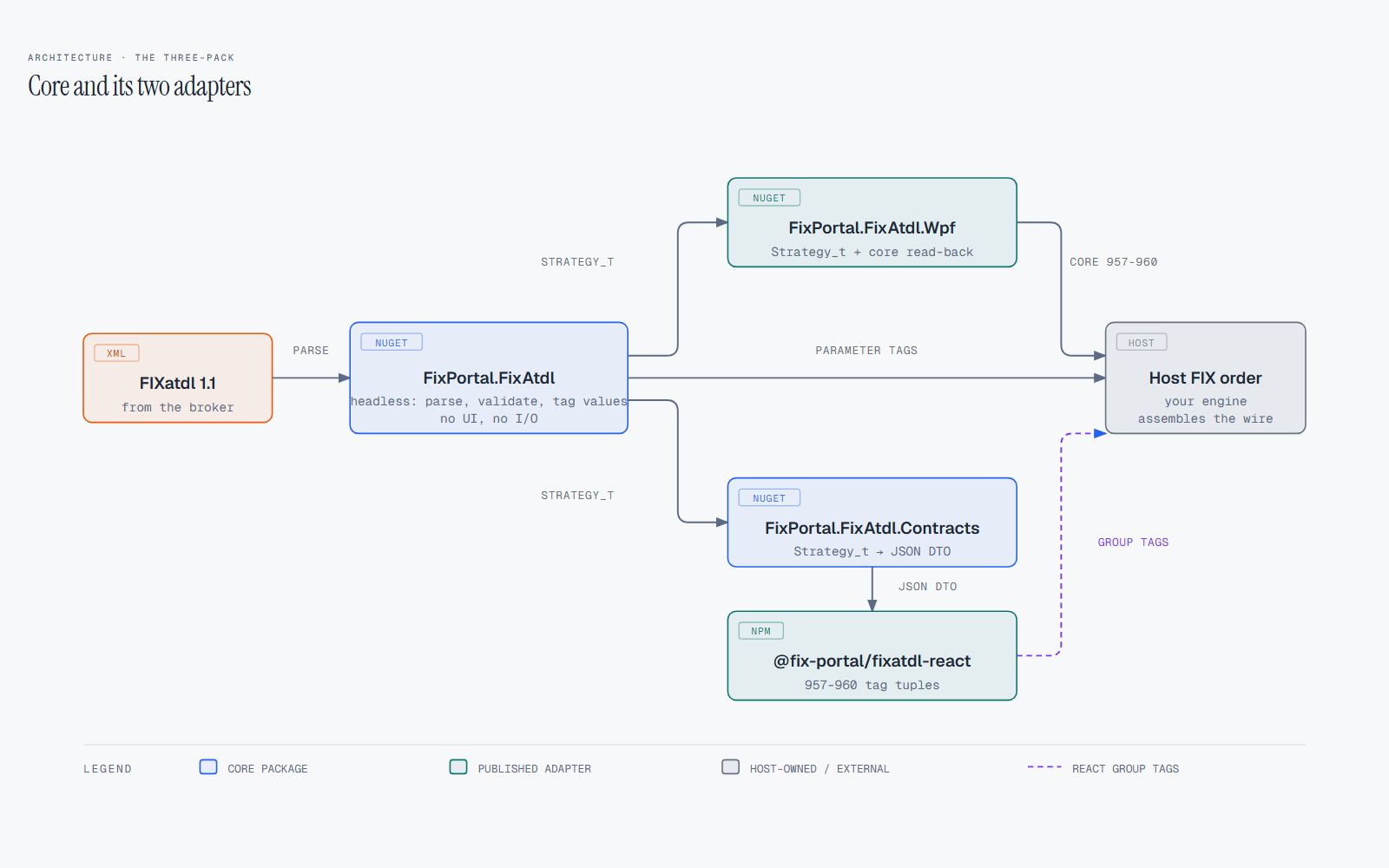

This package is the headless core. If what you need is a rendered, editable strategy form, take one of the adapters built on it — they are complete implementations, not samples.

The WPF adapter consumes this package directly. The React adapter takes the JSON that FixPortal.FixAtdl.Contracts maps from a parsed document.

What it is not

• Not a FIX engine. It produces FIX tag values; sending them over the wire is the host application's responsibility. Pair with QuickFIX/n or similar.
• Not a UI library. The upstream Atdl4net's WPF rendering layer has been removed from this package. Rendering lives in the adapters above, or in your own UI on top of the parsed model — Blazor, Avalonia, anything.

Read these first

• Usage guide — loading, setting values, validation, FIX output, exceptions.
• API reference — the types a host actually calls.
• Architecture overview — the pipeline, layers, and load-bearing components.
• Conformance record — the assessed FIXatdl 1.1 surface and its limits.
• Changelog — what changed in each release.

Install

FixPortal.FixAtdl on NuGet.org:

dotnet add package FixPortal.FixAtdl

Quick start

using FixPortal.FixAtdl.Xml;

var reader = new StrategiesReader();
using var stream = File.OpenRead("twap.xml");
var strategies = reader.Load(stream);

var twap = strategies.Strategies[0];
twap.Parameters["StartTime"].WireValue = "20260101-09:30:00";
twap.Parameters["EndTime"].WireValue = "20260101-16:00:00";

foreach (var tag in twap.Parameters.GetOutputValues())
    Console.WriteLine($"{(int)tag.Key}={tag.Value}");

Differences from upstream Atdl4net

• Target framework: net10.0 only (upstream: net3.5, net4.0).
• Namespace: FixPortal.FixAtdl.* (upstream: Atdl4net.*).
• WPF UI controls removed; library is now UI-agnostic.
• Common.Logging → Microsoft.Extensions.Logging.Abstractions.
• Nullable reference types enabled throughout.
• New xUnit v3 test suite (AwesomeAssertions + NSubstitute).

Development

Open FixPortal.FixAtdl.slnx in Visual Studio, then build the solution and run the tests from Test Explorer. The command-line checks below are the ones CI runs, in CI's order — run them all before pushing.

dotnet tool restore

dotnet csharpier check .

dotnet restore FixPortal.FixAtdl.slnx

dotnet build FixPortal.FixAtdl.slnx --configuration Release --no-restore

dotnet test --solution FixPortal.FixAtdl.slnx --configuration Release --no-build

dotnet dotnet-coverage collect -f cobertura -o coverage.cobertura.xml "dotnet test --solution FixPortal.FixAtdl.slnx --configuration Release --no-build"

./scripts/assert-coverage-floor.ps1 -ReportPath coverage.cobertura.xml -Package FixPortal.FixAtdl -MinimumLineRate 70

./scripts/assert-coverage-floor.ps1 -ReportPath coverage.cobertura.xml -Package FixPortal.FixAtdl.Contracts -MinimumLineRate 82

dotnet-coverage is a pinned local tool, restored by dotnet tool restore. CI collects one Cobertura report and enforces a 70% line floor on FixPortal.FixAtdl and an 82% line floor on FixPortal.FixAtdl.Contracts. The floor values live in .github/workflows/ci.yml. Run the floor script with PowerShell 7 (pwsh); it requires version 7.0 or newer.

CSharpier is a pinned local tool. CI runs the read-only check; fix formatting locally with dotnet csharpier format . and commit the result — never as the gate itself, which would turn a failing check into a silent pass.

To produce a package locally:

dotnet pack FixPortal.FixAtdl.slnx --configuration Release --no-build --output ./_pkgout

Files modified from upstream carry a // FP Enhancement: <date> — <reason> banner.

Benchmarks

The repository-owned BenchmarkDotNet workloads cover representative FIXatdl XML parsing and FIX message parse/emit paths. Run them manually in Release mode; CI compiles the project but does not use workstation timings as a performance gate.

dotnet run --project benchmarks/FixPortal.FixAtdl.Benchmarks/FixPortal.FixAtdl.Benchmarks.csproj --configuration Release -- --filter '*'

Mutation testing

This repo uses Stryker.NET for mutation testing. stryker-config.json sets mutate: ["**/*.cs"], so the whole library is in scope.

Run it locally from the test project directory — the working directory is load-bearing, because stryker-config.json names no test project:

dotnet tool restore
cd tests/FixPortal.FixAtdl.Tests
dotnet stryker --config-file ../../stryker-config.json

Output lands under tests/FixPortal.FixAtdl.Tests/StrykerOutput/<timestamp>/reports/. CI summarizes the run with scripts/summarize-stryker.ps1 and uploads both the full Stryker output and compact summaries:

• mutation-summary.json
• mutation-summary.md

Licence

MIT, inherited from upstream. See LICENSE. Attribution preserved in NOTICE.

Status

The latest NuGet.org release is 1.4.0; source on main carries the same version. Adapter versions that consume this package:

The public surface is governed by semantic versioning and recorded in the changelog; there is no analyzer enforcing it at build time (PublicApiAnalyzers was removed before 1.0.5). Issues and PRs are welcome.
