JobMaster.Dashboard 0.0.2-alpha

JobMaster.Dashboard

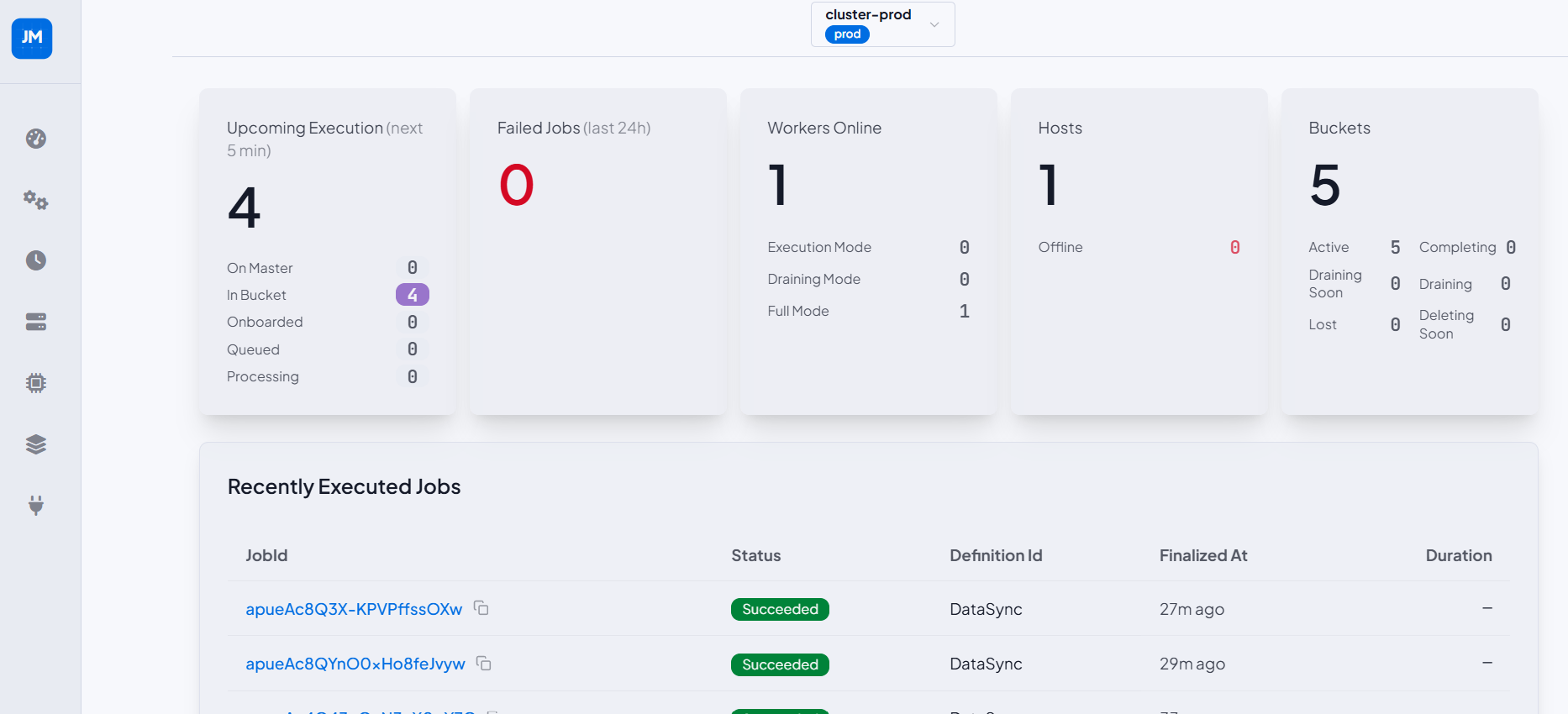

A browser-based single-page application for monitoring and managing your JobMaster clusters. Served as embedded static assets directly from your ASP.NET Core application — no separate deployment required.

📦 Installation

dotnet add package JobMaster.Dashboard

The dashboard connects to the JobMaster API over HTTP. If both live in the same process, also install JobMaster.Api. If the API is deployed separately, no additional package is needed.

⚙️ Setup

// 1. Register the cluster (master DB only — no workers required for the dashboard)
builder.Services.AddJobMasterCluster(config =>
{
    config.ClusterId("prod");
    config.UsePostgresForMaster("Host=db.internal;Database=jobmaster;Username=app;Password=...;");
});

// 2. Configure the API
builder.Services.UseJobMasterApi(o =>
{
    o.BasePath = "/jm-api";
    o.RequireAuthentication = true;
    o.EnableSwagger = true;
    o.IncludeClusterIdsInOpenApi();
    o.UseApiKeyAuth()
     .AddApiKey("dashboard", "secure-key-here");
});

// 3. Configure the Dashboard
builder.Services.AddJobMasterDashboard(dashboard =>
{
    dashboard.UseBasePath("/jm-dashboard");
    dashboard.FromOpenApiJson(); // auto-discovers clusters and auth from the API spec

    dashboard.ConfigureAuthRetention()
        .SetAuthRetentionType(DashboardAuthRetentionType.ServerSideInMemory);

    dashboard.AddPrimaryTheme(DashboardBuiltInTheme.JobMasterLight, "Light")
        .SetBorderRadii(box: "0.75rem", selector: "0.5rem");
});

var app = builder.Build();

// 4. Start the runtime and serve the dashboard
await app.Services.StartJobMasterRuntimeAsync();
app.MapJobMasterApi();
app.StartJobMasterDashboard();

app.Run();

🛡️ Authentication

Supports API Key, Username & Password, Simple JWT (paste token), and JWT Form (login form → token endpoint). Configure which providers appear in the sign-in UI:

dashboard.ConfigApiKeyAuth().WithDisplayName("API Key");
dashboard.ConfigUserPasswordAuth().WithDisplayName("Username & Password");
dashboard.ConfigSimpleJwtAuth().WithDisplayName("Bearer Token");

Or let FromOpenApiJson() auto-discover providers from the API's OpenAPI spec.

🎨 Themes & Per-Cluster Visual Identity

Pin a distinct theme to each cluster so users instantly know which environment they are in:

dashboard.AddPrimaryTheme(DashboardBuiltInTheme.JobMasterLight, "Light");

dashboard.AddTheme(DashboardBuiltInTheme.Corporate, "Production")
    .DefaultForClusterId("prod");

dashboard.AddTheme(DashboardBuiltInTheme.Dark, "QA")
    .DefaultForClusterId("qa");

📚 Full Documentation

• DashboardConfiguration.md — complete configuration reference
• DashboardScreenshots.md — annotated screenshots of every dashboard page
