Logic Apps Standard - Integration Testing Framework

A .NET testing framework for Azure Logic Apps Standard

---

Table of Contents

1. What This Framework Does
2. How It Compares to Microsoft's Built-In Testing Options
3. Installing the Packages
4. Prerequisites and Configuration
5. IsMockEnabled - Putting an Environment Under Test
6. Using the Management Framework Directly in .NET
7. Sending Messages to Azure Service Bus
8. Uploading Blobs to Azure Storage Account
9. Writing Tests in Gherkin
10. Sample Workflow Definitions

---

What This Framework Does

The Problem

Azure Logic Apps Standard provides no first-class .NET API for interacting with workflow runs at runtime. When you want to test your integration logic after deployment, you are left writing raw HTTP calls to the Azure Management REST API, manually deserialising complex JSON, and building your own polling and retry logic. Testing nested structures - actions inside scopes, conditions, loops, switch cases - requires understanding deeply nested raw JSON responses. There is no object model, no abstraction, and no way to write readable, maintainable acceptance tests.

The Solution

This framework delivers two things:

---

1. The Management Library - Object-Oriented Access to Logic Apps Standard

The LogicApps.Management library is a full object-oriented .NET model of Azure Logic Apps Standard. It wraps the Azure Management REST API and exposes everything you would want to interact with as strongly typed C# objects. The entire library is fully asynchronous.

What you can do with it:

• Retrieve a LogicApp instance representing your deployed Logic Apps Standard resource
• List all Workflow objects within the app, retrieve their definitions, and invoke their triggers
• Fetch WorkflowRun instances filtered by time range, correlation ID, or status
• Navigate the complete action tree of any run - top-level actions, actions inside Scope containers (Try/Catch/Finally), branches of Condition actions (true and false), cases of Switch actions, and individual iterations of ForEach and Until loops - all through a clean object model
• Find any action by name anywhere in the tree using a depth-first search, regardless of how deeply nested it is
• Read action inputs, outputs, status, error information, and tracked properties

Each action type is modelled with its own class: ScopeAction, ConditionAction, SwitchAction, ForEachAction, UntilAction, and the base Action for standard connectors. Repetitions within loops are themselves modelled as typed objects (ForEachActionRepetition, UntilActionRepetition), each capable of loading their own child actions on demand.

This means that from C#, reading a run's data looks like navigating an object graph - not parsing raw JSON.

Always reflects your current deployment. The framework retrieves workflow definitions directly from the Azure Management REST API at runtime. This means the action tree, run statuses, and all values the framework exposes always correspond to the version of the workflow that is currently deployed to your Logic Apps Standard resource. There is no local definition file to keep in sync; if you deploy a new version of a workflow, the framework picks it up automatically on the next test run.

---

2. The Specifications Layer - Gherkin-Based Acceptance Testing

The LogicApps.TestFramework.Specifications library wraps the Management library in a full set of Reqnroll step definitions, enabling business-readable Gherkin scenarios that test complete workflow chains end-to-end.

What this enables:

• Trigger workflows from test scenarios - by invoking the HTTP trigger directly, by uploading a payload to Azure Blob Storage and sending a claim-check message to Azure Service Bus, or by file-based input
• Wait for completion - the framework polls automatically and caches the run once it completes, minimising API calls
• Assert on workflow execution at any level of the action tree - top-level actions, deeply nested actions inside scopes and conditions, specific loop iterations, all iterations of a loop, switch case branches, and nested loops
• Validate data transformations (XSLT, Liquid) by reading the action output and deserialising it into a strongly typed C# model for field-level assertions
• Validate correlated multi-workflow chains - trigger a receive workflow and then validate all correlated processor and sender instances using the same correlation identifier that was set during the receive run

The step definitions maintain an internal context (the current workflow and its run list) that is automatically set when a workflow is triggered or when a named workflow step executes. All subsequent assertion steps in the scenario reuse this cached context, resulting in minimal API calls and fast test execution.

For transformation testing specifically, the framework provides BaseTransformationStepDefinition<TSource, TDestination> - a generic base class that handles all the infrastructure (storage upload, service bus claim-check, run polling, output deserialisation) and requires the concrete test class only to implement a single method: how to deserialise the transformation output body into the destination type.

---

How It Compares to Microsoft's Built-In Testing Options

Microsoft provides several tools for testing Logic Apps Standard. This framework takes a fundamentally different approach and addresses gaps that none of the Microsoft tools cover.

Microsoft Offering	Scope	Limitation
Built-in Automated Test Framework	Visual Studio Code extension	Requires manual test case creation in VS Code, no programmatic API, no CI/CD integration without custom scripting, limited assertion capability
Automated Test SDK	.NET SDK for unit-style tests	Runs workflows locally in isolation, not against a live deployed environment, no real connector execution
Unit Test Generation (VS Code)	Code generation tool	Generates unit tests for local execution only, still requires manual assertion authoring, no integration-level testing
Mocking / Static Results Testing	Local mock execution	Replaces connector calls with static values locally, not a substitute for real deployed integration testing
Data Mapper Test Executor	XSLT/map validation	Validates data mapping logic in isolation only, no workflow context
Local Debugging + Test Execution (VS Code)	Developer-time tooling	Manual, interactive, not automatable in a pipeline

Where this framework is different:

1. It runs against the real deployed environment. Not local emulation, not mocked connectors. The workflow runs in Azure, against the real infrastructure - Service Bus, Storage Account, API Management, and downstream systems. You are testing what is actually deployed.

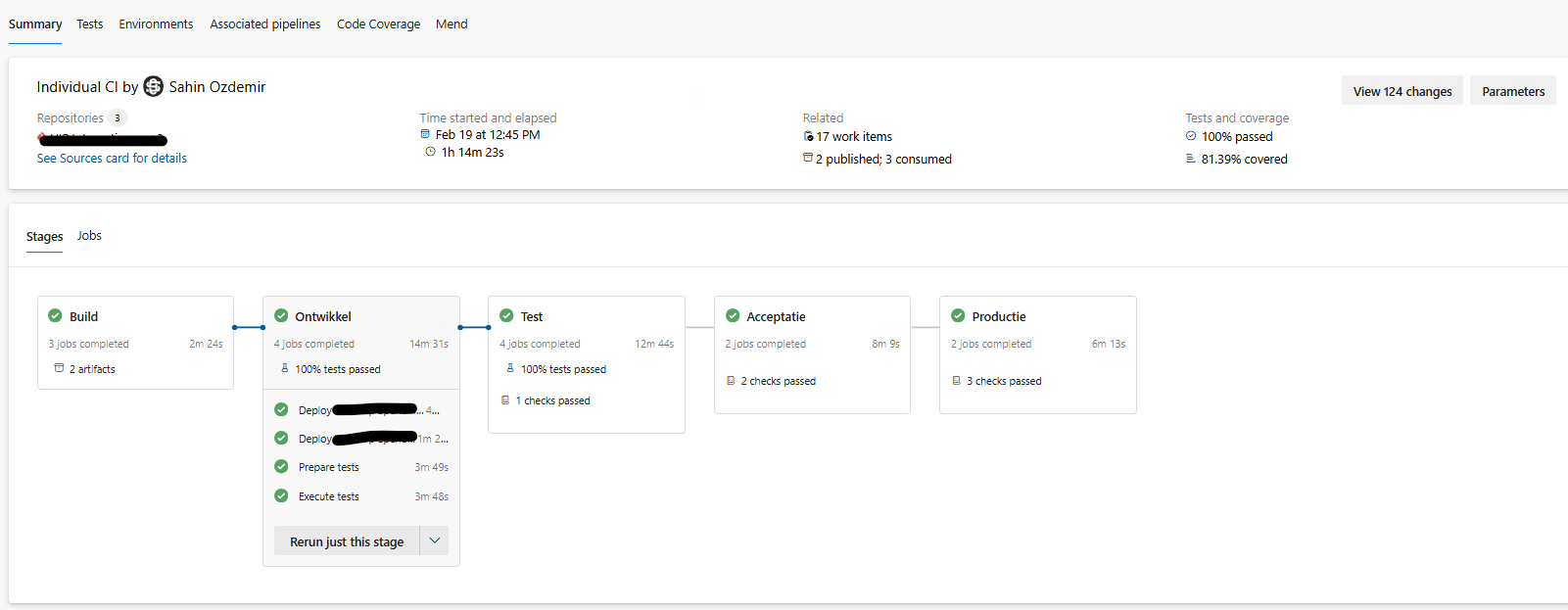

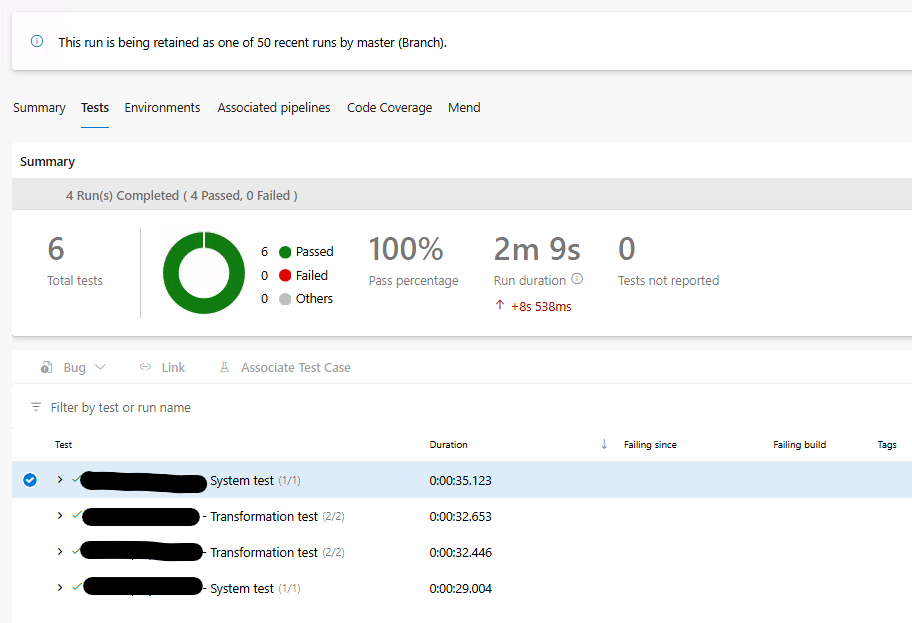

2. It is designed for your DevOps pipeline. Every scenario is a NUnit test that produces a standard pass/fail result. Drop the test project into your Azure DevOps or GitHub Actions pipeline after the deployment step. If the tests pass, the deployment is verified. If they fail, the pipeline stops.

3. It provides a proper object model. The Microsoft SDK does not give you a navigable object graph of a live workflow run. This framework does. Finding an action at any nesting depth, reading its output, checking its status - these are single method calls on strongly typed objects.

4. It supports real end-to-end chain validation. Testing a receive-process-send chain across three workflows, where the processor has five correlated instances each with nested loops and condition branches, is expressed in a single readable Gherkin scenario. No Microsoft tool handles this.

5. It enables transformation testing against live data. You can trigger a real transformation workflow with a real message, wait for it to complete, deserialise the XSLT or Liquid output into a typed C# model, and assert on individual fields - in a single test scenario. This is not possible with any Microsoft-provided tool.

6. It supports mocking for isolated integration testing. By leveraging the IsMockEnabled feature described below, you can put source and target systems into a mocked state during test runs. This means you can test the full workflow behaviour - including send actions to SFTP servers, calls to APIs through API Management - without polluting production or staging systems. The Microsoft tooling does not provide a mechanism for this in a deployed environment.

Bottom line: Microsoft's tools are useful during development, locally, in VS Code. This framework is what you use after deployment, in your pipeline, to verify that the integration works end to end in a real environment.

---

Installing the Packages

The framework is distributed as four NuGet packages. In most cases you only need to reference one of them — NuGet resolves the others automatically as transitive dependencies.

Package	Install when you want to...
LogicApps.TestFramework.Specifications	Write Gherkin-based integration tests (the most common case)
LogicApps.Management	Write custom C# integration tests without the Gherkin layer
LogicApps.Management.Repository	Use only the Service Bus or Blob Storage helpers in isolation
LogicApps.Management.Models	Use only the data model classes — pulled in automatically, rarely installed directly

---

Install from NuGet.org

Packages are published to nuget.org and can be installed with no additional configuration.

.NET CLI

# Full Gherkin test framework
dotnet add package LogicApps.TestFramework.Specifications

# Management API only (no Gherkin)
dotnet add package LogicApps.Management

Package Manager Console (Visual Studio)

Install-Package LogicApps.TestFramework.Specifications

PackageReference in .csproj

<PackageReference Include="LogicApps.TestFramework.Specifications" Version="1.1.0" />

Replace 1.1.0 with the version you want. See the releases page for the latest version number.

---

Install from GitHub Packages

Packages are also published to GitHub Packages. GitHub Packages requires authentication even for public packages, so two extra steps are needed.

Step 1 — Create a GitHub Personal Access Token (PAT)

1. Go to github.com → click your profile picture → Settings
2. In the left sidebar click Developer settings → Personal access tokens → Tokens (classic)
3. Click Generate new token (classic)
4. Give it a name (e.g. NuGet read) and tick the read:packages scope
5. Click Generate token and copy the value — you will not be able to see it again

Step 2 — Add the GitHub Packages source

Create or update a nuget.config file in the root of your solution (next to your .sln or .slnx file):

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <packageSources>
    <add key="nuget.org" value="https://api.nuget.org/v3/index.json" />
    <add key="github" value="https://nuget.pkg.github.com/sahinozd/index.json" />
  </packageSources>
  <packageSourceCredentials>
    <github>
      <add key="Username" value="YOUR_GITHUB_USERNAME" />
      <add key="ClearTextPassword" value="YOUR_PAT" />
    </github>
  </packageSourceCredentials>
</configuration>

Replace YOUR_GITHUB_USERNAME with your GitHub username and YOUR_PAT with the token you created in Step 1.

Important: Do not commit nuget.config with a real PAT to source control. Either add it to .gitignore, use environment variable substitution, or store the credentials in your user-level NuGet config (%appdata%\NuGet\NuGet.Config on Windows) instead.

Step 3 — Install as normal

Once the source is registered, install the package using any of the standard methods:

dotnet add package LogicApps.TestFramework.Specifications

<PackageReference Include="LogicApps.TestFramework.Specifications" Version="1.1.0" />

---

Storing credentials safely in a CI/CD pipeline

If you are consuming these packages in your own pipeline, add the GitHub Packages source using environment variables rather than committing credentials.

GitHub Actions

- name: Add GitHub Packages source
  run: |
    dotnet nuget add source \
      --username "${{ github.actor }}" \
      --password "${{ secrets.GITHUB_TOKEN }}" \
      --store-password-in-clear-text \
      --name github \
      "https://nuget.pkg.github.com/sahinozd/index.json"

The built-in GITHUB_TOKEN secret has read:packages permission automatically — no PAT is needed in GitHub Actions.

Azure DevOps

Add the GitHub Packages feed as an external NuGet service connection in your Azure DevOps project, then reference it in your pipeline:

- task: NuGetAuthenticate@1

- task: DotNetCoreCLI@2
  inputs:
    command: restore
    feedsToUse: config
    nugetConfigPath: nuget.config

---

Prerequisites and Configuration

Azure Infrastructure

The following Azure resources are required:

• Azure Logic Apps Standard instance containing the workflows under test
• Azure Service Bus namespace, used to trigger workflows via the claim-check pattern and to validate send-side behaviour. This is complementary if your workflows are e.g. decoupled by Service Bus (or triggered by it)
• Azure Storage Account, used to store message payloads as part of the claim-check pattern. Also complementary, in the examples provided, decoupling happens through Service Bus, via the claim-check pattern

Entra ID App Registration

Create an App Registration in Microsoft Entra ID with the following:

• A client secret (used for authentication)
• The application permission access_as_application (Application ID: 25c1e7fc-03c5-4fdd-b076-716ebcb74a84) enabled

Assign the following RBAC roles to the App Registration on the respective resources:

Resource	Role
Logic Apps Standard	Website Contributor
Storage Account	Storage Blob Data Contributor and Storage Blob Data Reader
Service Bus Namespace	Azure Service Bus Data Sender and Azure Service Bus Data Receiver

appsettings.json

The integration test project reads configuration from an appsettings.json file. The values shown use the Azure DevOps token replacement syntax (#{...}#) so that the file can be committed safely and filled in at pipeline execution time.

{
  "ClientId": "#{testFramework_client_id}#",
  "ClientSecret": "#{testFramework_client_secret}#",
  "TenantId": "#{testFramework_tenant_id}#",
  "SubscriptionId": "#{testFramework_subscription_id}#",
  "ResourceGroup": "#{testFramework_resource_group_name}#",
  "LogicAppName": "#{testFramework_la_name}#",
  "LogicAppApiVersion": "#{testFramework_la_api_version}#",
  "ServiceBusNamespace": "#{testFramework_sb_namespace}#",
  "StorageAccount": "#{testFramework_sa_name}#",
  "VariableActionName": "#{testFramework_variable_action_name}#",
  "CorrelationIdVariableName": "#{testFramework_correlation_id_variable_name}#",
  "LoadRunsSinceMinutes": "-10",
  "PollIntervalSeconds": "3"
}

Key	Purpose
ClientId	The Application (client) ID of the Entra ID App Registration. Used to authenticate against the Azure Management API, Service Bus, and Storage Account.
ClientSecret	The client secret of the App Registration. Used together with ClientId and TenantId to obtain an access token from Entra ID.
TenantId	The Entra ID tenant (directory) ID. Identifies which directory to authenticate against.
SubscriptionId	The Azure subscription ID. Used to construct the Azure Management API resource path for the Logic Apps instance.
ResourceGroup	The name of the Azure Resource Group containing the Logic Apps Standard instance.
LogicAppName	The name of the Logic Apps Standard resource. Used to scope all workflow queries and trigger calls to the correct app.
LogicAppApiVersion	The Azure Management REST API version to use for Logic Apps calls (e.g. 2024-04-01).
ServiceBusNamespace	The Service Bus namespace hostname prefix (e.g. my-servicebus). The framework builds the full hostname as {namespace}.servicebus.windows.net.
StorageAccount	The Storage Account name (e.g. mystorageaccount). The framework builds the full endpoint as {name}.blob.core.windows.net.
VariableActionName	The name of the action that initialises variables (default: Initialize_variables). Used to locate the correlation ID variable within the run.
CorrelationIdVariableName	The name of the variable within the initialise-variables action that holds the correlation ID (default: correlationId).
LoadRunsSinceMinutes	A negative integer representing the number of minutes to look back when querying for workflow runs. For example, -10 means only runs started within the last 10 minutes are considered. Increase the magnitude (e.g. -30) if your workflows take longer to appear in the Azure Management API.
PollIntervalSeconds	The number of seconds the framework waits between polling attempts while waiting for a workflow run to finish. Defaults to 3 if not specified. Increase this value to reduce Azure Management API call volume in slower environments.

Local overrides with appsettings.local.json

During local development you often need to supply real credentials without committing them to source control. The test framework supports an optional appsettings.local.json file that is layered on top of appsettings.json at runtime.

• Values in appsettings.local.json override the corresponding keys in appsettings.json.
• The file is optional — if it does not exist the framework runs with only appsettings.json.
• Add appsettings.local.json to your .gitignore to prevent accidental commits of real credentials.

A typical local file looks like:

{
  "ClientId": "your-real-client-id",
  "ClientSecret": "your-real-client-secret",
  "TenantId": "your-real-tenant-id",
  "SubscriptionId": "your-real-subscription-id",
  "ResourceGroup": "your-resource-group",
  "LogicAppName": "your-logic-app-name",
  "LogicAppApiVersion": "2024-04-01",
  "ServiceBusNamespace": "your-servicebus-namespace",
  "StorageAccount": "your-storage-account",
  "VariableActionName": "Initialize_variables",
  "CorrelationIdVariableName": "correlationId",
  "LoadRunsSinceMinutes": "-10",
  "PollIntervalSeconds": "3"
}

---

Known Limitations

Stateless Workflows Are Not Supported

This framework relies on the Azure Management REST API's run history endpoint to poll for completed workflow runs and navigate their action trees. Stateless workflows do not persist run history by default, so the Management API returns no run records for them. As a result, the polling loop will time out and no action assertions can be made.

Workaround: Even though I have not tested it myself, you could use the following workaround. Enable run history for stateless workflows by setting OperationOptions to WithStatelessRunHistory in your Logic Apps Standard host configuration:

{
  "extensions": {
    "workflow": {
      "settings": {
        "Runtime.FlowRetentionThreshold": "7.00:00:00",
        "Runtime.Backend.FlowRunRetentionPeriod": "7.00:00:00"
      }
    }
  }
}

Or toggle it per-workflow in the designer under Settings → General → Enable run history. Once run history is enabled for a stateless workflow it behaves identically to a stateful workflow from this framework's perspective.

---

IsMockEnabled - Putting an Environment Under Test

When running integration tests against a deployed Development or Test environment, you often do not want your workflows to call real downstream systems. Sending messages to an SFTP server, calling a production CRM API, or writing to a live database pollutes target systems with test data and creates unwanted side effects.

The IsMockEnabled flag is an application setting pattern that allows you to put the entire environment into a test mode without modifying any workflow definitions.

How It Works

A Logic Apps Standard workflow parameter IsMockEnabled (boolean) is read at runtime and used as a routing decision inside the workflow. Examples of how this is used in practice:

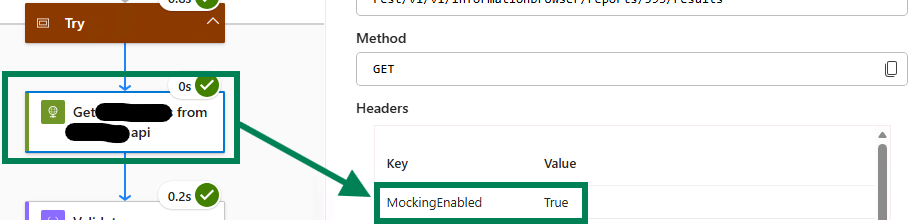

• API Management: the IsMockEnabled value is passed as a request header. An API Management policy reads this header and returns a mocked response when it is true, bypassing the real backend entirely.

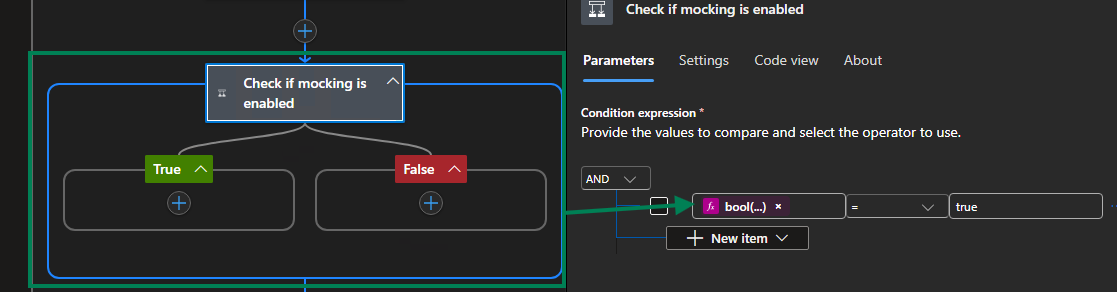

• Send workflows: a condition on IsMockEnabled skips the actual SFTP write, HTTP call, or queue send and instead routes to a no-op branch.
• Receive workflows: a mocked trigger payload can be substituted when the flag is set.

This means your integration tests can exercise the full workflow logic - transformation, routing, error handling, tracked properties - without any data reaching source or target systems. The test environment is fully isolated from an external perspective, but the workflow runs exactly as it would in production from an internal perspective.

Configuration

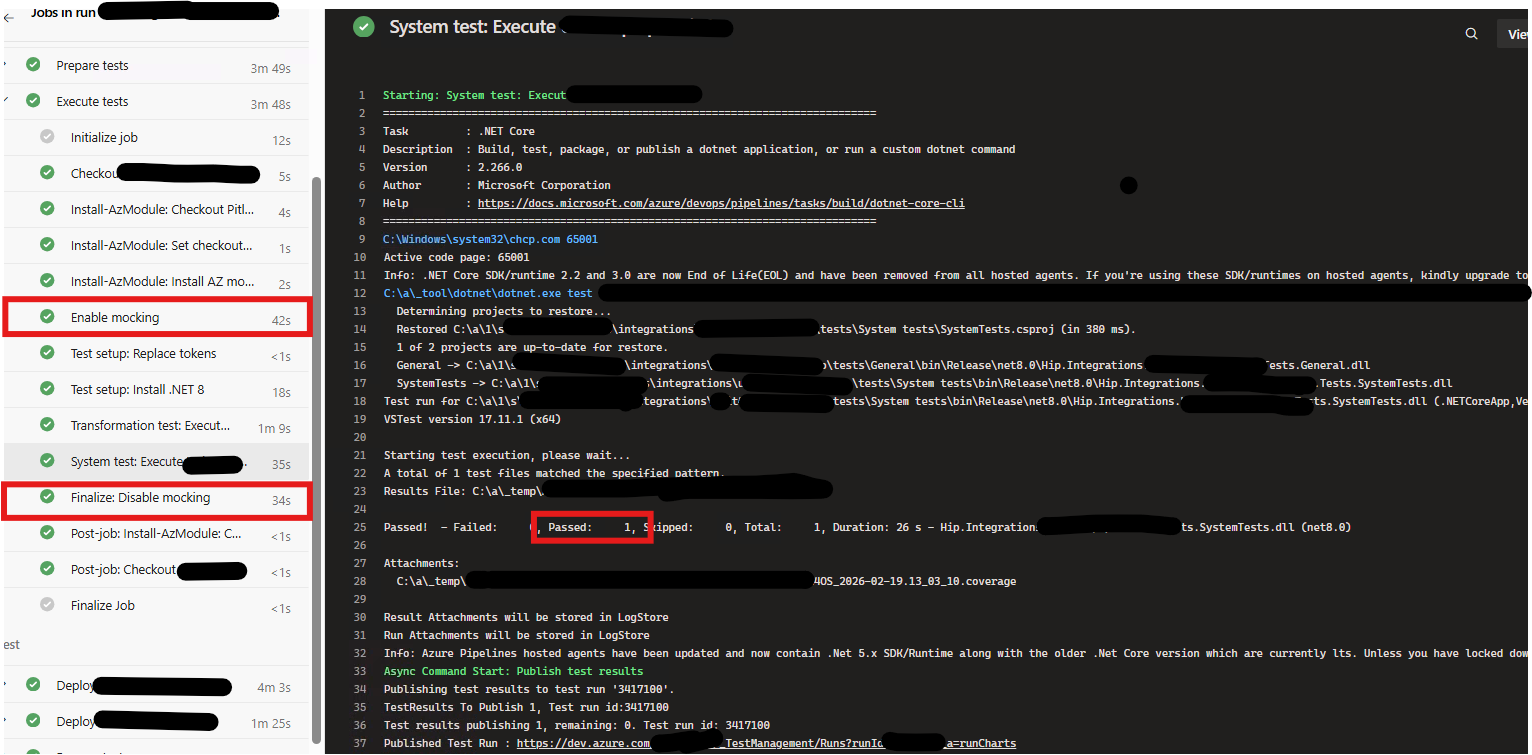

The steps below describe a complete end-to-end setup. The pipeline fragments shown are for Azure DevOps YAML pipelines and are illustrative - the exact implementation will vary depending on your project structure, service connection names, and parameter conventions.

---

Step 1 - Provision the app setting in your infrastructure

Add isMockEnabled to the Logic Apps Standard app settings in your Bicep infrastructure code. Set the default value to 'False' so mocking is always off in production.

resource logicAppsStandardConfig 'Microsoft.Web/sites/config@2025-03-01' = {
  name: 'web'
  parent: logicAppsStandard
  properties: {
    ftpsState: 'Disabled'
    netFrameworkVersion: 'v8.0'
    use32BitWorkerProcess: false
    alwaysOn: true
    functionsRuntimeScaleMonitoringEnabled: true
    vnetPrivatePortsCount: 2
    functionAppScaleLimit: int(Configuration.integration.workload.maxScaleInstances!)
    healthCheckPath: '/api/chk-health/triggers/Request/invoke?api-version=2022-05-01'
    minimumElasticInstanceCount: int(Configuration.integration.workload.maxScaleInstances!)
    appSettings: allEnvironmentVariables  // merged with the entry below
    connectionStrings: []
    cors: {
      allowedOrigins: [
        environment().portal
      ]
      supportCredentials: false
    }
  }
}

In allEnvironmentVariables, include:

{
  name: 'isMockEnabled'
  value: 'False'
}

---

Step 2 - Reference the app setting in the Logic Apps parameters

In the Logic Apps Standard parameters.json, add an IsMockEnabled entry that reads its value from the app setting at runtime:

"IsMockEnabled": {
  "type": "String",
  "value": "@appsetting('isMockEnabled')"
}

This makes IsMockEnabled available as a workflow parameter throughout all workflows in the Logic App, without hardcoding the value in the workflow definition.

---

Step 3 - Implement IsMockEnabled in your workflows

There are two patterns depending on how the downstream system is called.

Pattern A - API Management (pass the flag as a request header)

When calling a backend through Azure API Management, pass IsMockEnabled as a custom request header. The API Management policy inspects the header and returns a mocked response when it is True, bypassing the real backend call entirely.

The corresponding API Management inbound policy:

<choose>
  <when condition="@(context.Request.Headers.GetValueOrDefault(&quot;MockingEnabled&quot;, &quot;False&quot;)
                    .Equals(&quot;True&quot;, StringComparison.OrdinalIgnoreCase))">
    <return-response>
      <set-status code="200" reason="OK" />
      <set-header name="Content-Type" exists-action="override">
        <value>application/json</value>
      </set-header>
      <set-body>{"successful": true}</set-body>
    </return-response>
  </when>
  <when condition="@(context.Request.Headers.GetValueOrDefault(&quot;MockingEnabled&quot;, &quot;False&quot;)
                    .Equals(&quot;False&quot;, StringComparison.OrdinalIgnoreCase))">

    <send-request ignore-error="true" timeout="20"
                  response-variable-name="bearerToken" mode="new">
      <set-url>#{backend_url}#</set-url>
      <set-method>POST</set-method>
      <set-header name="Content-Type" exists-action="override">
        <value>application/x-www-form-urlencoded</value>
      </set-header>
      <set-body>#{token_request_body}#</set-body>
    </send-request>

  </when>
</choose>

Pattern B - Condition in the workflow (for protocols where a header cannot be passed)

When calling a system that does not support passing a custom header - for example SFTP, FTP, or a direct database connector - use a Condition action in the workflow itself. The True branch skips the actual action; the False branch executes it normally.

The condition expression evaluates bool(parameters('IsMockEnabled')) against true. When mocking is enabled, the True branch contains a no-op action (or nothing at all). This ensures the real connector action is never executed during test runs, so no test data reaches the target system.

---

Step 4 - Replace appsettings.json values during the pipeline

The integration test project reads its configuration from appsettings.json using the #{...}# token replacement syntax (see the appsettings.json section for all keys). In your Azure DevOps pipeline, use a token replacement task in the deployment stage to fill in the correct values for the target environment before running the tests.

Ensure that at minimum the following values are set for the environment under test:

• ClientId, ClientSecret, TenantId - the Entra ID App Registration credentials
• SubscriptionId, ResourceGroup, LogicAppName - scopes the framework to the correct Logic App
• ServiceBusNamespace, StorageAccount - point to the Service Bus and Storage Account for the test environment

---

Step 5 - Enable mocking before running the tests

Before executing the integration tests, set the isMockEnabled app setting to True using the Azure Management API. The set.mocking.ps1 script at the root of this repository handles this.

Azure DevOps pipeline task:

- task: AzurePowerShell@5
  displayName: 'Enable mocking'
  inputs:
    azureSubscription: '${{ parameters.AzureDevOpsServiceConnection }}'
    azurePowerShellVersion: 'LatestVersion'
    pwsh: true
    ScriptType: 'FilePath'
    ScriptPath: 'extras/set.mocking.ps1'
    ScriptArguments: >-
      -EnableMocking $True
      -LogicAppName "$(LogicAppName)"
      -ResourceGroupName "$(ResourceGroupName)"
      -SubscriptionId "$(SubscriptionId)"

The set.mocking.ps1 script uses the Azure Management REST API to patch only the isMockEnabled app setting without overwriting any other settings:

param (
    [Parameter()]
    [string]
    $AppSettingName = "isMockEnabled",

    [Parameter()]
    [Boolean]
    $EnableMocking = $true,

    [Parameter(Mandatory = $True)]
    [string]
    $LogicAppName,

    [Parameter(Mandatory = $True)]
    [string]
    $ResourceGroupName,

    [Parameter(Mandatory = $true)]
    [string]
    $SubscriptionId
)

$managementUri = "https://management.azure.com/subscriptions/$SubscriptionId/resourceGroups/$ResourceGroupName" +
                 "/providers/Microsoft.Web/sites/$LogicAppName/config/appsettings?api-version=2024-11-01"

$accessToken = (Get-AzAccessToken -ResourceUrl 'https://management.azure.com/' -AsSecureString).Token
$headers = @{
    'Authorization' = "Bearer $(ConvertFrom-SecureString $accessToken -AsPlainText)"
    'Content-Type'  = "application/json"
}

$appSettingsBody = @{
    properties = @{
        $AppSettingName = "$($EnableMocking)"
    }
}

$jsonBody = $appSettingsBody | ConvertTo-Json

Write-Output "Invoking management uri: $managementUri"

try {
    Invoke-RestMethod -Method PATCH -Uri $managementUri -Headers $headers -Body $jsonBody `
                      -ErrorAction Stop -ErrorVariable appSettingsError
}
catch {
    Write-Output "Failed to set app setting $AppSettingName for $LogicAppName."
    Write-Output $appSettingsError
}

The script is included in the repository as extras/set.mocking.ps1.

---

Step 6 - Run the integration tests

Execute the integration test project. The framework connects to the deployed Logic App, sends messages, waits for workflow runs to complete, and asserts on the results.

- task: DotNetCoreCLI@2
  condition: succeededOrFailed()
  displayName: 'Integration tests'
  inputs:
    command: 'test'
    projects: '$(Build.SourcesDirectory)/path/to/YourIntegrationTests.csproj'
    arguments: >-
      --configuration Release
      --collect "Code coverage"
    testRunTitle: 'Integration Tests - $(StageName)'

---

Step 7 - Disable mocking after the tests

Always disable mocking after the test run, regardless of whether the tests passed or failed. This ensures the environment is not left in test mode.

- task: AzurePowerShell@5
  displayName: 'Disable mocking'
  condition: always()    # run even if tests failed
  inputs:
    azureSubscription: '${{ parameters.AzureDevOpsServiceConnection }}'
    azurePowerShellVersion: 'LatestVersion'
    pwsh: true
    ScriptType: 'FilePath'
    ScriptPath: 'extras/set.mocking.ps1'
    ScriptArguments: >-
      -EnableMocking $False
      -LogicAppName "$(LogicAppName)"
      -ResourceGroupName "$(ResourceGroupName)"
      -SubscriptionId "$(SubscriptionId)"

The condition: always() is important. Without it, a test failure would skip the disable step and leave the environment in mocked mode permanently.

---

Step 8 - Typical pipeline structure

A complete Azure DevOps pipeline that incorporates deployment and integration testing typically looks like this, with a dedicated stage per environment:

The environment stages Development and Test follow the same sequence of jobs:

1. Deploy - deploy the Logic Apps Standard zip package and infrastructure
2. Prepare tests - replace appsettings.json tokens and enable mocking
3. Execute tests - run the integration test project
4. Teardown - disable mocking

This pattern ensures that every deployment to an environment is immediately verified by the full integration test suite before promotion to the next stage.

---

Using the Management Framework Directly in .NET

The Management library can be used independently of the Gherkin layer, for example to write custom NUnit integration tests, diagnostic tools, or operational scripts.

Setup

using LogicApps.Management;
using LogicApps.Management.Factory;
using LogicApps.Management.Helper;
using LogicApps.Management.Repository;
using Microsoft.Extensions.DependencyInjection;

var configuration = AppSettings.Configuration;
var baseAddress = new Uri("https://management.azure.com");

var services = new ServiceCollection();
services.AddHttpClient("AzureManagementClient", client =>
{
    client.BaseAddress = baseAddress;
    client.DefaultRequestHeaders.Add("accept", "application/json");
    client.Timeout = TimeSpan.FromMinutes(5);
});
services.AddHttpClient("AzurePublicHttpClient", client =>
{
    client.Timeout = TimeSpan.FromMinutes(5);
});
services.AddHttpClient("EntraTokenClient");

var serviceProvider = services.BuildServiceProvider();
var httpClientFactory = serviceProvider.GetRequiredService<IHttpClientFactory>();

var tokenClient = new EntraTokenClient(httpClientFactory);
var azureHttpClient = new AzureHttpClient(
    httpClientFactory,
    tokenClient,
    baseAddress,
    configuration["TenantId"]!,
    configuration["ClientId"]!,
    configuration["ClientSecret"]!);

var repository = new AzureManagementRepository(azureHttpClient, baseAddress);
var actionHelper = new ActionHelper(repository);
var actionFactory = new ActionFactory(configuration, repository, actionHelper);

var logicApp = await LogicApp.CreateAsync(
    configuration,
    repository,
    actionFactory,
    actionHelper,
    loadRunsSince: DateTime.UtcNow.AddHours(-24));

Retrieving Workflows and Runs

// Get all workflows in the Logic App
var workflows = await logicApp.GetWorkflowsAsync();

// Find a specific workflow by name
var workflow = workflows.FirstOrDefault(w => w.Name == "prc");

// Get all runs for the workflow (cached after first call)
var runs = await workflow!.GetWorkflowRunsAsync();

// Filter to succeeded runs only
var succeededRuns = runs.Where(r => r.Status == "Succeeded").ToList();

// Get the most recent run
var latestRun = runs.MaxBy(r => r.StartTime);

// Get runs by correlation ID
var correlatedRun = runs.FirstOrDefault(r => r.CorrelationId == myCorrelationId);

// Clear the cache and reload from Azure
await workflow.ReloadAsync();

Triggering a Workflow

var trigger = await workflow!.GetTriggerAsync();

// Trigger without a body (e.g. recurrence workflows)
await trigger.Run(null);

// Trigger with a JSON body (e.g. HTTP-triggered workflows)
using var content = new StringContent("{\"key\":\"value\"}", new MediaTypeHeaderValue("application/json"));
await trigger.Run(content);

// Trigger with additional request headers
var headers = new Dictionary<string, string> { { "x-custom-header", "value" } };
await trigger.Run(content, headers);

Navigating the Action Tree

Actions at every nesting depth are returned by GetWorkflowRunActionsAsync as typed objects. The returned list contains only top-level actions; nested actions are reachable through the properties of their parent.

var run = runs.First();

// Get top-level actions for this run
var actions = await run.GetWorkflowRunActionsAsync();

foreach (var action in actions)
{
    Console.WriteLine($"{action.DesignerName}: {action.Status}");
    Console.WriteLine($"  Start: {action.StartTime}, End: {action.EndTime}");

    // Read the raw action output (JToken)
    if (action.Output != null)
        Console.WriteLine($"  Output: {action.Output}");

    // Read error information when the action failed
    if (action.Error != null)
        Console.WriteLine($"  Error: {action.Error.Code} - {action.Error.Message}");
}

Finding an Action Anywhere in the Tree

FindActionByNameAsync performs a depth-first search across the entire action tree, including actions inside scopes, conditions, loop iterations, and switch cases.

// Returns all actions matching the name, at any nesting depth
var matchingActions = await run.FindActionByNameAsync("Transform source data type to target data type");
var transformAction = matchingActions?.FirstOrDefault();

Console.WriteLine($"Status: {transformAction?.Status}");
Console.WriteLine($"Output: {transformAction?.Output}");

Reading Actions Inside a Scope

A ScopeAction (Try, Catch, Finally, or any named scope) exposes its children through the Actions property, which is populated when the parent run's actions are loaded.

var scopeAction = actions.OfType<ScopeAction>().FirstOrDefault(a => a.DesignerName == "Try");

foreach (var child in scopeAction!.Actions)
{
    Console.WriteLine($"  {child.DesignerName}: {child.Status}");
}

Reading Condition Branches

A ConditionAction exposes its true branch via DefaultActions and its false branch via ElseActions.

var conditionAction = actions.OfType<ConditionAction>().FirstOrDefault(a => a.DesignerName == "Check order value");

// True branch (condition evaluated to true)
foreach (var child in conditionAction!.DefaultActions)
    Console.WriteLine($"  True branch: {child.DesignerName}: {child.Status}");

// False branch (condition evaluated to false)
foreach (var child in conditionAction.ElseActions)
    Console.WriteLine($"  False branch: {child.DesignerName}: {child.Status}");

Reading Switch Cases

A SwitchAction exposes its cases through the Cases property. Each SwitchCase has a Name and a list of Actions.

var switchAction = actions.OfType<SwitchAction>().FirstOrDefault(a => a.DesignerName == "Route by tier");

foreach (var switchCase in switchAction!.Cases)
{
    Console.WriteLine($"Case: {switchCase.Name}");
    foreach (var child in switchCase.Actions)
        Console.WriteLine($"  {child.DesignerName}: {child.Status}");
}

Reading ForEach Loop Iterations

A ForEachAction exposes its completed iterations through the Repetitions property. Each ForEachActionRepetition holds the actions executed in that iteration.

var foreachAction = actions.OfType<ForEachAction>().FirstOrDefault(a => a.DesignerName == "For each item");

foreach (var repetition in foreachAction!.Repetitions)
{
    Console.WriteLine($"Iteration {repetition.Name}: {repetition.Status}");
    foreach (var child in repetition.Actions)
        Console.WriteLine($"  {child.DesignerName}: {child.Status}");
}

Reading Until Loop Iterations

A UntilAction exposes its iterations through the Repetitions property. Each UntilActionRepetition holds the actions and iteration count for that cycle.

var untilAction = actions.OfType<UntilAction>().FirstOrDefault(a => a.DesignerName == "Until");

foreach (var repetition in untilAction!.Repetitions)
{
    Console.WriteLine($"Iteration {repetition.Name}: {repetition.Status} (count: {repetition.IterationCount})");
    foreach (var child in repetition.Actions)
        Console.WriteLine($"  {child.DesignerName}: {child.Status}");
}

Reading Workflow Run Trigger Information

var runTrigger = await run.GetWorkflowRunTriggerAsync();

Console.WriteLine($"Trigger: {runTrigger?.DesignerName}");
Console.WriteLine($"Status:  {runTrigger?.Status}");
Console.WriteLine($"Start:   {runTrigger?.StartTime}");
Console.WriteLine($"Input:   {runTrigger?.Input}");
Console.WriteLine($"Output:  {runTrigger?.Output}");

---

Sending Messages to Azure Service Bus

ServiceBusMessageBuilder and ServiceBusMessageSender are in the LogicApps.Management.Repository.ServiceBus namespace. Together they cover all scenarios for putting a message on a Service Bus queue or topic from a test: plain payloads, the claim-check pattern, correlation identifiers, typed message properties, and arbitrary custom application properties.

ServiceBusMessageBuilder

ServiceBusMessageBuilder is a fluent builder. Every method returns this, so calls can be chained. Call Build() at the end to get the serialized payload string and the application-properties dictionary that ServiceBusMessageSender needs.

Method	Purpose
Create()	Creates a new builder instance.
WithClaimCheck(fileName)	Sets the payload to { "fileLocation": "<fileName>" }. Use this when the actual payload has been stored in Blob Storage and the message carries only a reference to it (the claim-check pattern).
WithMessage(message)	Sets a raw string payload. Use this for direct-payload messages where no external storage is involved.
WithCorrelationId(correlationId)	Embeds the correlation ID as a Service Bus broker property (BrokerProperties.CorrelationId), so Logic Apps can correlate runs automatically.
WithMessageType(messageType)	Adds a messageType application property. Useful when a downstream workflow routes on message type.
AddProperty(key, value)	Adds an arbitrary application property. If the key already exists its value is overwritten.
Build()	Returns (string Message, Dictionary<string, string> Properties). Throws InvalidOperationException if no payload was set.

ServiceBusMessageSender

ServiceBusMessageSender takes an IAzureManagementRepository in its constructor (injected automatically when using the Gherkin base classes). It exposes a single method:

Task SendAsync(string queueOrTopicPath, string message, Dictionary<string, string>? properties = null)

The queueOrTopicPath is the queue or topic name as it appears in the Service Bus namespace (e.g. sbt-sourcesystem-out or sbq-processor-in). The method throws HttpRequestException on any non-success HTTP response.

Examples

Claim-check message with correlation ID (the most common pattern)

var (message, properties) = ServiceBusMessageBuilder
    .Create()
    .WithClaimCheck(fileName)           // payload was already written to Blob Storage
    .WithCorrelationId(correlationId)   // embeds CorrelationId in BrokerProperties
    .Build();

await ServiceBusMessageSender.SendAsync("sbt-sourcesystem-out", message, properties);

The resulting Service Bus message body is:

{ "fileLocation": "<fileName>" }

And the BrokerProperties application property contains:

{ "CorrelationId": "<correlationId>" }

Claim-check message with additional custom properties

var (message, properties) = ServiceBusMessageBuilder
    .Create()
    .WithClaimCheck(fileName)
    .WithCorrelationId(correlationId)
    .WithMessageType("demoMessageType")  // adds messageType application property
    .AddProperty("sender", "rcv")        // adds arbitrary application property
    .Build();

await ServiceBusMessageSender.SendAsync("sbt-sourcesystem-out", message, properties);

Plain payload message (no claim-check)

var payload = JsonConvert.SerializeObject(myObject);

var (message, properties) = ServiceBusMessageBuilder
    .Create()
    .WithMessage(payload)
    .WithCorrelationId(correlationId)
    .Build();

await ServiceBusMessageSender.SendAsync("sbq-processor-in", message, properties);

Message with no correlation ID and no additional properties

var (message, properties) = ServiceBusMessageBuilder
    .Create()
    .WithMessage("ping")
    .Build();

await ServiceBusMessageSender.SendAsync("sbq-processor-in", message);

---

Uploading Blobs to Azure Storage Account

BlobRequestBuilder and BlobStorageSender are in the LogicApps.Management.Repository.StorageAccount namespace. They handle uploading a string payload as a block blob to an Azure Blob Storage container, with all required Azure Storage REST API headers set automatically.

BlobRequestBuilder

BlobRequestBuilder is a static helper that constructs the HttpContent object for a blob upload. It sets the following headers automatically:

Header	Value
x-ms-date	Current UTC time in RFC 1123 format
x-ms-version	2023-11-03
x-ms-blob-type	BlockBlob
x-ms-blob-content-type	MIME type derived from the file name extension (via the MimeTypes library)

static HttpContent Build(string payload, string fileName)

The payload is the string body of the blob (typically a JSON or XML document). The fileName is used solely to determine the MIME type; it does not affect where in the container the blob is stored (that is determined by the fileName passed to BlobStorageSender.UploadAsync).

BlobStorageSender

BlobStorageSender takes an IAzureManagementRepository in its constructor (injected automatically when using the Gherkin base classes). It exposes a single method:

Task UploadAsync(string container, string fileName, HttpContent content)

Parameter	Description
container	The name of the Blob Storage container (e.g. demoworkload).
fileName	The blob name within the container. This becomes the full blob path, so it can include virtual directory separators (e.g. input/2024/message.json).
content	The HttpContent returned by BlobRequestBuilder.Build.

The method throws HttpRequestException on any non-success HTTP response.

Examples

Upload a serialized object as a JSON blob

var json = JsonConvert.SerializeObject(message, new JsonSerializerSettings
{
    NullValueHandling = NullValueHandling.Include
});

var content = BlobRequestBuilder.Build(json, fileName);
await BlobStorageSender.UploadAsync(container, fileName, content);

The fileName here is reused for both the MIME type lookup and the blob name. A typical value looks like a1b2c3d4-rcv-source-data-20240601T120000.json.

Upload an XML document

var xml = SerializeToXml(myObject);     // your own serialization helper
var fileName = $"{correlationId}.xml";

var content = BlobRequestBuilder.Build(xml, fileName);
await BlobStorageSender.UploadAsync("demoworkload", fileName, content);

Because the MIME type is derived from the file extension, .xml files automatically receive application/xml as the blob content type.

Full claim-check pattern: upload payload then send claim-check

This is the complete sequence used by BaseTransformationStepDefinition and is the recommended pattern for triggering receive-process-send chains from tests:

// 1. Serialize the source message
var json = JsonConvert.SerializeObject(message, new JsonSerializerSettings
{
    NullValueHandling = NullValueHandling.Include
});

// 2. Upload the payload to Blob Storage
var fileName = $"{Guid.NewGuid()}-source-data.json";
var content = BlobRequestBuilder.Build(json, fileName);
await BlobStorageSender.UploadAsync("demoworkload", fileName, content);

// 3. Send the claim-check message to Service Bus so the workflow picks it up
var correlationId = Guid.NewGuid().ToString();

var (sbMessage, properties) = ServiceBusMessageBuilder
    .Create()
    .WithClaimCheck(fileName)
    .WithCorrelationId(correlationId)
    .Build();

await ServiceBusMessageSender.SendAsync("sbt-sourcesystem-out", sbMessage, properties);

---

Writing Tests in Gherkin

The Gherkin layer is built on Reqnroll and exposes a rich set of step definitions that cover all common Logic Apps Standard testing scenarios. Tests are written in .feature files and bound to step definitions through Reqnroll's standard discovery mechanism.

A full reference of all available steps, path syntax, and testing patterns is available in TESTING_GUIDE.md.

Receive-Process-Send Chain Validation

The most common enterprise integration pattern is a receive-process-send chain across multiple workflows. The framework tracks correlation identifiers automatically and allows the entire chain to be validated in a single scenario.

Feature: Receive-Process-Send-Sample-StepDefinition

Scenario: Validate complete workflow chain
    When Workflow "rcv" is triggered
    Then The workflow executed these actions:
        | StepName                          | Status    |
        | Initialize variable sampleMessage | Succeeded |
        | Initialize variable correlationId | Succeeded |
    And In "Try":
        | StepName               | Status    |
        | Validate json schema   | Succeeded |
    And All iterations of "For each item in items" executed:
        | StepName                             | Status    |
        | Write message payload to storage     | Succeeded |
        | Send claim-check message to topic    | Succeeded |

    Then For all instances of "prc" with the same correlation:
        | StepName                                        | Status    |
        | Receive new claim-check message from queue      | Succeeded |
        | Initialize variable correlationId               | Succeeded |
    And In "Try":
        | StepName                                        | Status    |
        | Retrieve message payload from storage           | Succeeded |
        | Transform source data type to target data type  | Succeeded |
        | Send claim-check message to queue               | Succeeded |

    Then For all instances of "snd" with the same correlation:
        | StepName                                        | Status    |
        | Receive new claim-check message from queue      | Succeeded |
    And In "Try":
        | StepName                                        | Status    |
        | Retrieve message payload from storage           | Succeeded |

Transformation Testing

Transformation tests upload a source payload, trigger the workflow via a claim-check message, and assert on the typed deserialized output.

Feature: Transformation-Test-Sample-StepDefinition

Scenario: Transform source message to destination message
    Given A message with a data from the source system
    And It has the following source data:
        | Field   | Value          |
        | Value   | Open Sesame    |
        | OnClick | OpenMagicGate()|
    When The message payload is put in Storage Account container "demoworkload"
    And The claim-check is put on Service Bus topic "sbt-sourcesystem-out" with properties:
        | Field       | Value               |
        | sender      | sendingWorkflowName |
        | messageType | demoMessageType     |
    Then The workflow "prc" executed these actions:
        | StepName                                       | Status    |
        | Transform source data type to target data type | Succeeded |
    And Workflow step "Transform source data type to target data type" has transformed the data
    And The transformed data has "Status" with value "Open Sesame"
    And The transformed data has "Action" with value "OpenMagicGate()"

Complex Nested Loop and Condition Scenarios

Feature: Nested-Foreach-and-Until-Loops-Sample-StepDefinition

Scenario: Validate complete workflow with nested structures
    When Workflow "prc-nestedloops-and-do-until" is triggered

    Then The workflow executed these actions:
        | StepName             | Status    |
        | Recurrence           | Succeeded |
        | Initialize variables | Succeeded |
        | Set variable         | Succeeded |

    And In "Try":
        | StepName        | Status    |
        | For each number | Succeeded |
        | Until           | Succeeded |

    And In "Try.For each number[1]":
        | StepName                              | Status    |
        | For each letter                       | Succeeded |
        | Variable testString2 value less than 3| Succeeded |

    And In "Try.For each number[1].For each letter[2].For each character[3]":
        | StepName                 | Status    |
        | Set variable testString  | Succeeded |

    And In "Try.Until[1].Condition":
        | StepName                    | Status  |
        | Set variable untilCompleted | Skipped |

Creating a New Test Class

To create a new integration test for a specific feature, create a Reqnroll feature file and a matching step definition class. For transformation tests, inherit from BaseTransformationStepDefinition<TSource, TDestination> and implement the deserialization method. For non-transformation tests, inherit directly from BaseStepDefinition.

// Transformation test (XML output)
[Binding, Scope(Feature = "My-Transformation-Feature")]
public class MyTransformationStepDefinition : BaseTransformationStepDefinition<MySourceModel, MyDestinationModel>
{
    protected override MyDestinationModel DeserializeTransformedBody(string body)
    {
        using TextReader reader = new StringReader(body);
        return (MyDestinationModel)new XmlSerializer(typeof(MyDestinationModel)).Deserialize(reader)!;
    }
}

// Transformation test (JSON output)
[Binding, Scope(Feature = "My-Json-Transformation-Feature")]
public class MyJsonTransformationStepDefinition : BaseTransformationStepDefinition<MySourceModel, MyDestinationModel>
{
    protected override MyDestinationModel DeserializeTransformedBody(string body)
        => JsonConvert.DeserializeObject<MyDestinationModel>(body)!;
}

// Non-transformation integration test
[Binding, Scope(Feature = "My-Integration-Feature")]
public class MyIntegrationStepDefinition : BaseStepDefinition;

---

Sample Workflow Definitions

The Sample workflow definitions folder contains four ready-to-deploy Logic Apps Standard workflow JSON files. These are the same workflows that the integration tests in TestFramework.IntegrationTests are written against, so they serve as both a live reference for the framework's capabilities and a starting point for building your own workflows.

rcv.json - Recurrence-Triggered Receiver

A stateful workflow triggered by a Recurrence timer. It reads a batch of items, writes each payload to Blob Storage, and puts a claim-check message on a Service Bus topic for downstream processing.

Recurrence (trigger)
├── Initialize variable correlationId
├── Initialize variable errorMessage
├── Initialize variable sampleMessage
├── Initialize variable counter
├── Initialize variable
├── Try (Scope)
│   ├── Validate json schema
│   ├── For each item in items
│   │   ├── Increment variable counter
│   │   ├── Write message payload to storage
│   │   └── Send claim-check message to topic
│   ├── Send success tracked properties to table storage
│   └── Send success tracked properties to log analytics
└── Catch (Scope)
    ├── Filter errors
    ├── Remove inputs property from errors
    ├── For each (error loop)
    └── Terminate

prc.json - Service Bus–Triggered Processor

A stateful workflow triggered by a Service Bus message arriving on a queue. It retrieves the payload from Blob Storage, applies an XSLT or Liquid transformation, writes the transformed payload back to storage, and forwards a new claim-check to the next queue.

Receive new claim-check message from queue (trigger)
├── Initialize variable correlationId
├── Initialize variable errorMessage
├── Try (Scope)
│   ├── Retrieve message payload from storage
│   ├── Transform source data type to target data type
│   ├── Write message payload to storage
│   ├── Send claim-check message to queue
│   ├── Complete claim-check message in queue
│   └── Send success tracked properties to log analytics
└── Catch (Scope)
    ├── Filter errors
    ├── Remove inputs property from errors
    ├── Dead-letter claim-check message in queue
    ├── Send failed tracked properties to log analytics
    └── Terminate

snd.json - Service Bus–Triggered Sender

A stateful workflow triggered by a Service Bus message arriving on a queue. It retrieves the payload, posts it to an HTTP endpoint, inspects the HTTP status code with a Switch action, completes or dead-letters the claim-check accordingly, and emits tracked properties to Log Analytics.

Receive new claim-check message from queue (trigger)
├── Initialize variable correlationId
├── Initialize variable errorMessage
├── Try (Scope)
│   ├── Retrieve message payload from storage
│   ├── Post to google.com api
│   ├── Check http status code (Switch)
│   │   ├── Http status 200 (success case)
│   │   └── Default
│   │       ├── Set variable errorMessage to http response body
│   │       └── Throw exception
│   ├── Complete claim-check message in queue
│   └── Send success tracked properties to log analytics
└── Catch (Scope)
    ├── Filter errors
    ├── Remove inputs property from errors
    ├── Dead-letter claim-check message in queue
    ├── Send failed tracked properties to log analytics
    └── Terminate

prc-nestedloops-and-do-until.json - Nested Loops and Do-Until Reference Workflow

A stateful workflow designed specifically to demonstrate and test every nesting pattern supported by the framework: triple-nested ForEach loops, triple-nested Until loops, Condition actions inside both loop types, and a Switch action - all within a Try/Catch scope.

Recurrence (trigger)
├── Initialize variables
├── Set variable
├── Try (Scope)
│   ├── For each number (ForEach)
│   │   ├── For each letter (ForEach)
│   │   │   └── For each character (ForEach)
│   │   │       └── Set variable testString
│   │   └── Variable testString2 value less than 3 (Condition)
│   │       ├── TRUE: Set variable testString2 true
│   │       └── FALSE: (empty branch)
│   ├── Until
│   │   ├── Reset variable counter2
│   │   ├── Set variable teststring until
│   │   ├── Increment variable counter
│   │   ├── Condition
│   │   │   └── TRUE: Set variable untilCompleted
│   │   └── Until2
│   │       ├── Increment variable counter2
│   │       ├── Reset variable counter3
│   │       └── Until3
│   │           └── Increment variable counter3
│   ├── Condition in try
│   │   └── TRUE: Set variable testString in condition
│   └── Switch
│       └── Default: Set variable in switch
└── Catch (Scope)

This workflow is the direct source for the integration test scenarios in Foreach-Until-SampleStepDefinition.feature and for all path navigation examples in TESTING_GUIDE.md.
