ReflectiveForms

A schema-driven admin panel framework. Define entities with C# attributes, get a full CRUD admin panel with a modern React frontend — auto-save, display conditions, nested repeaters, entity relations, locking, SSO, AI-powered features (centralized AI assistant with tool-calling, semantic search, sanity checks, NL filtering), OpenAPI spec generation, and more.

Test Results

Last Updated: 2026-05-14 18:06:56 UTC

Preview

Annotate your C# models — ReflectiveForms generates the full admin UI automatically.

public class BlogPostModel : EntityFieldsModel
{
    [JsonProperty("title"),
     Text(label: "Title", instructions: "", mandatory: true)]
    public string Title = "";

    [JsonProperty("author"),
     Relation(label: "Author", instructions: "", relatedEntity: "user")]
    public string Author = "";

    [JsonProperty("content"),
     WysiwygEditor(label: "Post Content", instructions: "")]
    public string Content = "";

    [JsonProperty("excerpt"),
     TextArea(label: "Excerpt", instructions: "", mandatory: false),
     AISuggestion("Write a 1-sentence summary", "title", "content")]
    public string Excerpt = "";
}

That's it — register it, and the dashboard, list view, and full create/edit form appear automatically.

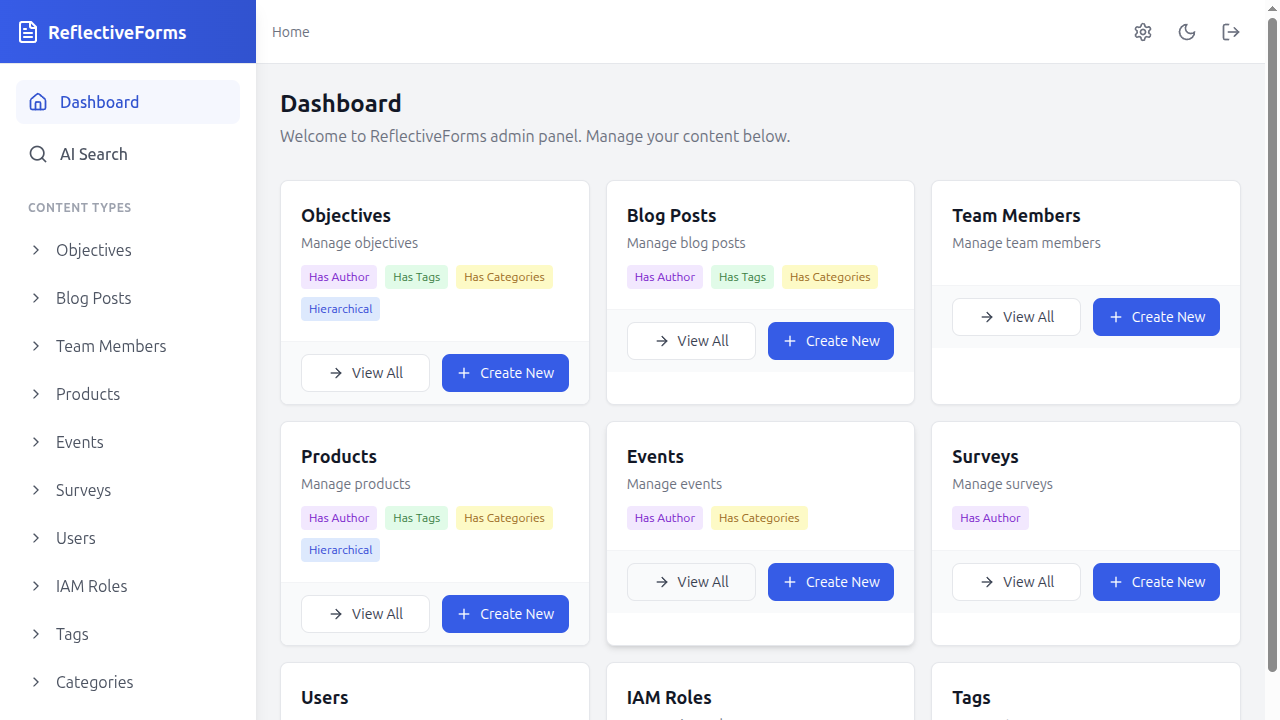

Dashboard showing all registered entity types with View All / Create New actions

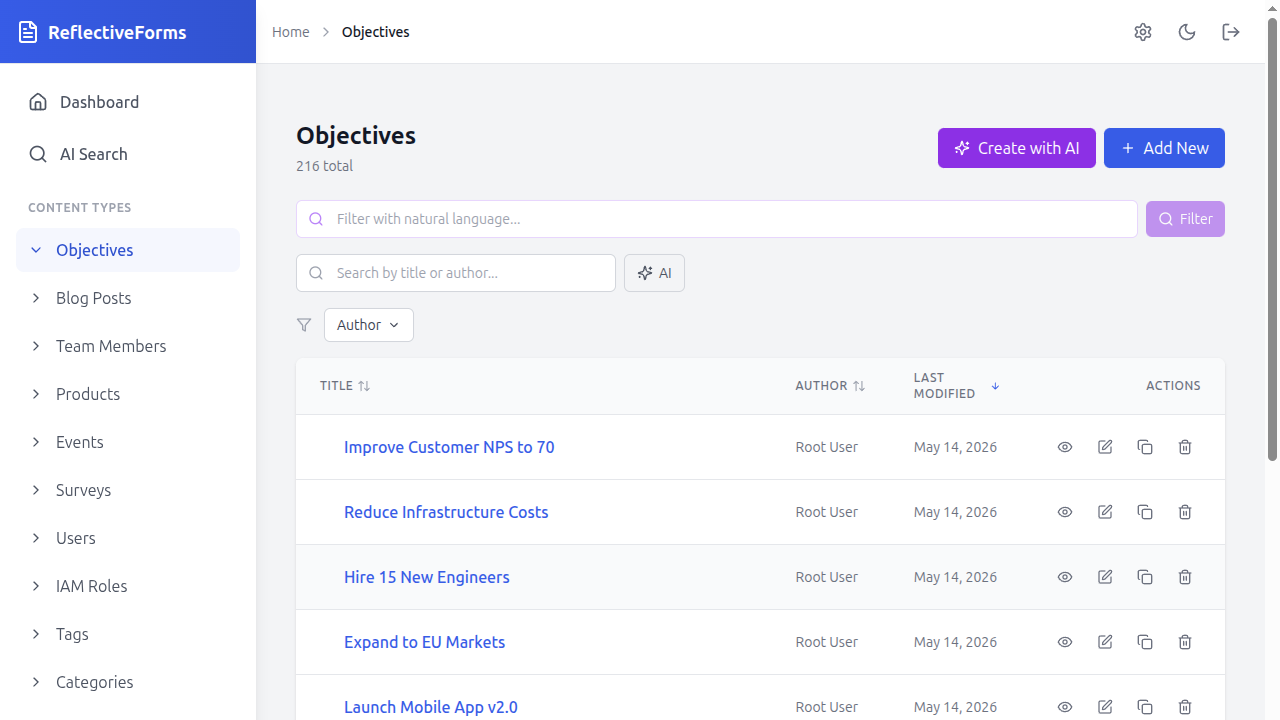

Searchable, sortable entity list with NL filter, AI search, and per-row actions

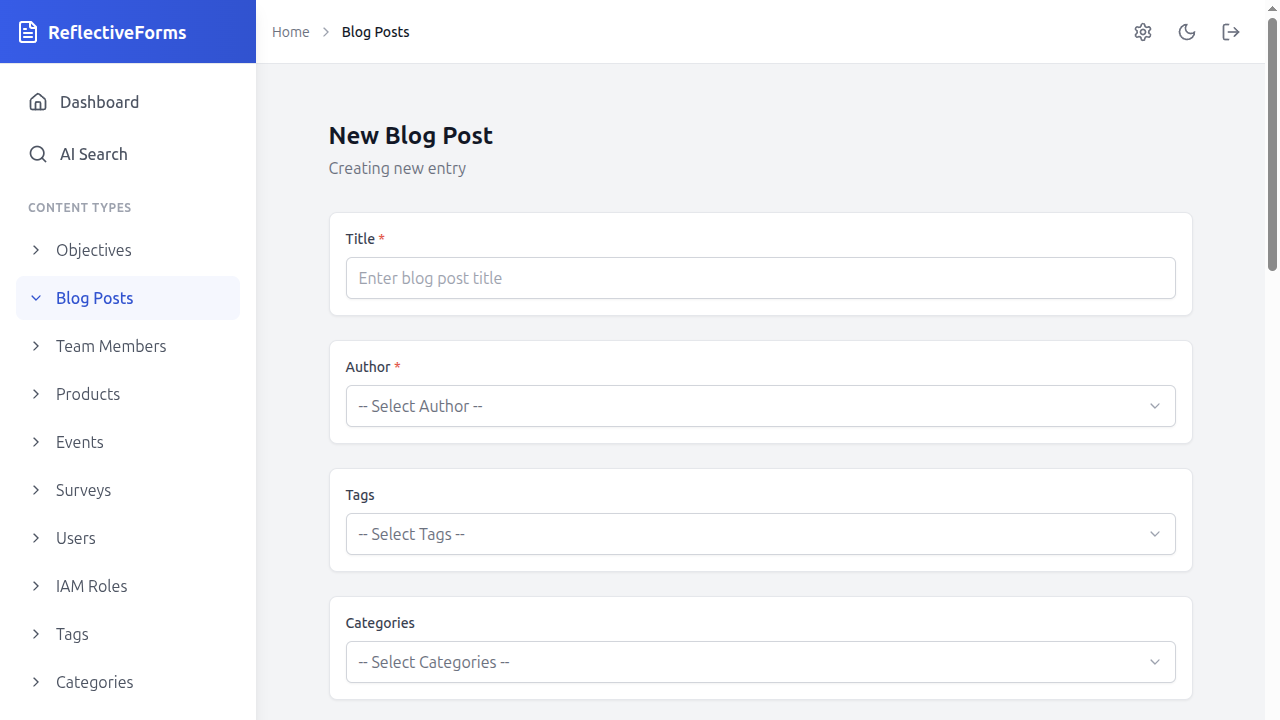

Auto-generated create form with rich field types: title, relation dropdowns, tags, WYSIWYG editor

Packages

Quick Start

Option 1: Scaffold a new project (recommended)

npx @reflective-forms/create-app my-project
cd my-project
# Start backend
cd backend && dotnet run
# In another terminal, start frontend
cd frontend && npm install && npm run dev

Option 2: Add to an existing .NET app

Backend:

dotnet add package ReflectiveForms.Core

// Program.cs
using Microsoft.Extensions.Logging;
using ReflectiveForms.Core;

var builder = WebApplication.CreateBuilder(args);
using var loggerFactory = LoggerFactory.Create(logging =>
{
    logging.AddConsole();
    logging.AddDebug();
});
var rfLogger = loggerFactory.CreateLogger<Program>();

var app = builder.BuildWithReflectiveFields(RfBuilder.Build(rfLogger));
app.Run();

// RfBuilder.cs
using CrossCloudKit.Database.Basic;
using CrossCloudKit.File.Basic;
using CrossCloudKit.Memory.Basic;
using CrossCloudKit.PubSub.Basic;
using Microsoft.Extensions.Logging;
using ReflectiveForms.Core;
using ReflectiveForms.Core.Endpoints;

public static class RfBuilder
{
    public static RfConfigurationBuilder Build(ILogger logger)
    {
        var pubSub = new PubSubServiceBasic();
        var memory = new MemoryServiceBasic(pubSub);
        var file = new FileServiceBasic(memory, pubSub);
        var db = new DatabaseServiceBasic("my-app-db", memory, Path.GetTempPath());

        return new RfConfigurationBuilder
        {
            Logger = logger,
            RootUserCredentials = new RootUserCredentials("admin@karasoftware.com", "123456"),
            RepositoryServiceConfiguration = new EntityRepositoryServiceConfiguration(
                db, memory, pubSub,
                new FileServiceConfiguration(file, "my-app-media")),
            EndpointConfiguration = new EndpointConfiguration
            {
                JwtSecret = "change-this-to-a-random-secret-at-least-32-chars",
                RootPath = "/rf",
                PublicUrlRootForApi = "http://localhost:9000/rf/api/",
                PublicFrontendBaseUrl = "http://localhost:3000",
            },
            EntityTypes =
            [
                new EntityConfigurationBuilder<NoteModel>
                {
                    EntityName = "note",
                    EntityReadableNameSingular = "Note",
                    EntityReadableNamePlural = "Notes",
                    SupportsFrontendEdit = true,
                    HasAuthor = false,
                    HasTags = false,
                    HasCategories = false,
                    HasParentChildRelationship = false,
                    RequireGlobalTitleUniqueness = false,
                    OptionalTitleSanityCheck = null,
                },
            ],
        };
    }
}

Frontend:

npm install @reflective-forms/frontend react react-dom react-router-dom

// main.tsx
import { createReflectiveFormsApp } from '@reflective-forms/frontend';

createReflectiveFormsApp({
  apiBaseUrl: 'http://localhost:9000/rf/api',
  appName: 'My Admin',
  primaryColor: '#2563eb',
});

Features

Entity Configuration (Backend)

• Declarative models — C# attributes: Text, TextArea, Select, Checkbox, DatePicker, Number, Range, Url, Email, Repeater, Group, Relation, WysiwygEditor, MediaSourceBase64
• Display conditions — Show/hide fields based on sibling values, works inside repeaters at any depth
• Nested repeaters — 3+ levels (e.g. Survey → Sections → Questions → Choices) with min/max enforcement
• Dynamic choices — Select options from async C# methods (compile-time or runtime)
• Dynamic defaults — Runtime-computed default values via async methods
• Sanity checks — Server-side validation with custom async logic (e.g. uniqueness)
• Entity metadata — Tags, categories, parent-child hierarchy
• Role-based access — IAM with per-entity-type CRUD capabilities
• System-managed entities — Root user, Owner role, and sharing admin roles are immutable; backend rejects UPDATE/DELETE with 403, frontend shows read-only view with "System" badge
• Individual sharing — Per-entity access control: share with specific users/roles, public toggle, auto-generated admin roles
• SSO — OpenID Connect, Azure AD, Google with auto-provisioning and domain filtering
• AI features (optional) — Centralized AI assistant with multi-turn chat and tool-calling (entity creation, updates, deletion, field suggestions, navigation — all with user approval), semantic search (vector indexing), AI sanity checks ([AISanityCheck]), AI field suggestions ([AISuggestion]), revision diff AI summaries, natural language filtering, AI relation suggestions ([AIRelationSuggestion]). All off by default — enable per entity type
• OpenAPI spec generation — Auto-generated OpenAPI 3.1 spec at /openapi.json, independent of AI features

Admin Panel (Frontend)

• Auto-save — Debounced saves with toast notifications
• Entity locking — Pessimistic concurrent edit protection
• Search, sort & filter — Client-side search by title/author, sortable columns, pagination
• Searchable selects — Filterable dropdowns for relations and large choice sets
• Read-only view — Public entity view with metadata, grid layouts, resolved relations
• View-only mode — Entities flagged SupportsFrontendEdit = false redirect to view page
• System-managed entity protection — System-managed entities (root user, Owner role, sharing admin roles) display a "System" badge, hide edit/delete/clone actions, and redirect edit URLs to the view page
• Depth-aware nesting — Nested fields render without redundant card wrappers
• Branding — Configurable app name, logo, primary color via CSS variable
• Custom pages — Add sidebar pages grouped by section
• Revision diff — Side-by-side comparison of entity revisions with field-level change highlighting
• SSO login — Dedicated SSO login page with branding
• Sharing dialog — Reusable sharing UI for any entity type with individual sharing enabled
• RF Sheets — Built-in spreadsheet editor (Univer) with 14 custom RF formulas, entity data sources, live collaborative viewing via WebSocket, sharing (user/role/public), and Excel export
• Live updates — WebSocket-based real-time broadcasting: editors push snapshots, viewers see changes instantly with scroll preservation
• AI components — Centralized AI assistant panel (multi-turn chat with tool-calling, entity creation/update/deletion proposals with user approval, field suggestions, navigation), semantic search overlay, AI sanity check badges, NL filter bar, AI diff summary, relation suggestions — all conditionally rendered based on backend feature flags and user capabilities

Configuration Reference

Builder (RfConfigurationBuilder)

Backend (EndpointConfiguration)

SSO Configuration

config.Endpoints.SsoConfiguration = new SsoConfiguration {
    Provider = SsoProvider.AzureAd,
    Authority = "https://login.microsoftonline.com/{tenant}/v2.0",
    ClientId = "your-client-id",
    ClientSecret = "your-secret",
    AllowedDomains = new[] { "company.com" },
    AutoProvisionUsers = true,
    DefaultRole = "editor",
};

OpenAPI Configuration

config.Endpoints.OpenApi = new OpenApiConfiguration
{
    Title = "My API",
    Version = "1.0.0",
    Description = "My ReflectiveForms API",
    ContactEmail = "admin@example.com",
    IncludeAuthEndpoints = true,     // Include login/logout/auth_check
    IncludeSchemaEndpoints = true,   // Include /schema
    IncludeMediaEndpoints = true,    // Include /media
    IncludeRfExtensions = true,      // Include x-rf-* properties
    IncludeAiEndpoints = true,       // Include AI endpoints (requires AiServiceConfiguration)
    RequireAuthentication = false,   // true = requires JWT/Cookie to access spec
};

AI Configuration (AiServiceConfiguration)

AI is fully optional. Set AiServiceConfiguration on RfConfigurationBuilder to enable AI features:

// Uses CrossCloudKit ILLMService + IVectorService
var llm = new LLMServiceOpenAI("http://localhost:11434/v1", "", "gemma3:12b", "nomic-embed-text:v1.5");
var vector = new VectorServiceBasic();

return new RfConfigurationBuilder
{
    // ... existing config ...
    AiServiceConfiguration = new AiServiceConfiguration(
        HeavyLlmService: llm,    // Complex tasks: entity generation, diff summaries
        LightLlmService: llm,    // Fast tasks: suggestions, sanity checks, NL filters, embeddings
        VectorService: vector),
};

Then enable per entity type:

new EntityConfigurationBuilder<BlogPostModel>
{
    // ... existing config ...
    EntityDescription = "A blog article with rich-text content, SEO metadata, and publication workflow.",
    SupportsSemanticSearch = true,          // Vector indexing on save
    SupportsAiGeneration = true,            // "Create with AI" endpoint
    SupportsAiDiffSummary = true,           // AI revision diff summaries
    SupportsNaturalLanguageFilter = true,   // NL → filter conditions
}

Field-level AI attributes:

[AISuggestion("Summarize in 2 sentences", "title", "content")]
public string Summary = "";

[AISanityCheck("Is this professional and free of spelling errors?", AISanityCheckSeverity.Warning)]
public string Description = "";

[AIRelationSuggestion(topK: 5)]  // On Relation fields — requires target entity to have SupportsSemanticSearch
public int RelatedAuthor;

Disabling RF Sheets

RF Sheets is enabled by default. To disable the built-in spreadsheet system:

return new RfConfigurationBuilder
{
    // ... existing config ...
    SheetsEnabled = false,
};

When disabled:

• The rf-sheets entity type is not registered (no sheet CRUD endpoints)
• Frontend sheet routes (/sheets, /sheets/:id) are hidden
• AI sheet tools (list_sheets, suggest_formula, etc.) are not available
• The entity name rf-sheets remains reserved and cannot be used for custom entities

Frontend (RfConfig)

Architecture

┌─────────────────────────────┐     ┌─────────────────────────────┐
│  @reflective-forms/frontend  │     │  ReflectiveForms.Core       │
│  React SPA (Vite)           │────▶│  ASP.NET Core Backend       │
│                             │     │                             │
│  • React 18 + TypeScript    │     │  • JSON schema generation   │
│  • React Hook Form + Zod    │     │  • CRUD via CrossCloudKit   │
│  • TanStack Query v5        │     │  • JWT + Cookie auth + SSO  │
│  • Tailwind CSS 3           │     │  • Entity locking           │
│  • Configurable branding    │     │  • Sanity check pipeline    │
│  • RF Sheets (spreadsheets) │     │  • Bulk read endpoint       │
│  • WebSocket live updates   │     │  • WebSocket live updates   │
│  • AI components (optional) │     │  • AI endpoints (optional)  │
│                             │     │  • OpenAPI 3.1 generation   │
└─────────────────────────────┘     └─────────────────────────────┘

Project Structure

ReflectiveForms/
├── ReflectiveForms.Core/             # .NET NuGet library
│   ├── Ai/                           #   AI services, vector sync, handlers, config
│   ├── Attributes/Fields/            #   Field attribute definitions (+ AI attributes)
│   ├── Endpoints/                    #   API endpoints, SSO, auth, AI, OpenAPI
│   ├── Models/                       #   Entity base models
│   ├── Operation/                    #   Locking, sanity checks, defaults
│   ├── Repositories/                 #   DB integration
│   └── Schema/                       #   JSON schema + OpenAPI generator
│
├── ReflectiveForms.Core.Tests/       # Backend unit tests (xUnit, 264)
│
├── ReflectiveForms.Frontend/         # React npm library
│   ├── src/
│   │   ├── api/                      #   API client
│   │   ├── components/               #   Fields, form, layout
│   ├── hooks/                    #   useEntity, useSchema, useAutoSave, useEntityLock, useLiveUpdates, useAi
│   │   ├── lib/                      #   createApp, RfConfigProvider, RF formulas, exports
│   │   └── components/ai/            #   AI components (assistant chat, search, suggest, sanity, etc.)
│   └── pages/                    #   Dashboard, List, Edit, View, RevisionDiff, Sheets, Login, SSO
│   ├── e2e/                          #   Playwright E2E tests (34 suites)
│   └── vite.config.lib.ts           #   Library build config
│
├── ReflectiveForms.Sample1/          # Sample backend app (6 entity types)
│
└── ReflectiveForms.CreateApp/        # CLI scaffolder
    ├── src/index.js                  #   Interactive prompts + template engine
    ├── templates/                    #   Backend, frontend, Docker templates
    └── tests/                        #   Scaffold integration tests (30)

API Endpoints

Testing

Backend

cd ReflectiveForms.Core.Tests
dotnet test    # 553 tests

Frontend Unit Tests

cd ReflectiveForms.Frontend
npm run test:run       # 895 tests (Vitest)

E2E Tests

cd ReflectiveForms.Frontend
npx playwright install
npm run test:e2e       # 360 tests across 34 suites (Playwright, 3 browsers)

CLI Scaffolder Tests

cd ReflectiveForms.CreateApp
node --test tests/scaffold.test.js   # 30 tests

Sample Entities (in ReflectiveForms.Sample1)

Entity types in the sample with AI enabled: Objective (semantic search, generation, diff summary, NL filter), Blog Post (semantic search, generation, diff summary, NL filter), Survey (diff summary), Team Member (semantic search), Product (semantic search).

Technical Details

Display Conditions

[JsonProperty("is_digital"),
 Checkbox(label: "Digital Product", instructions: "", defaultValue: false)]
public bool IsDigital;

[JsonProperty("weight_kg"),
 DisplayCondition("is_digital == false"),
 Number(label: "Weight (kg)", instructions: "", mandatory: false)]
public double WeightKg;

Conditions scope to the current repeater item when nested.

Nested Repeaters (3 levels)

[Repeater(repeaterFor: typeof(SurveySectionModel), minimumRows: 1, maximumRows: 10)]
public List<SurveySectionModel> Sections = [];

// Inside SectionModel:
[Repeater(repeaterFor: typeof(SurveyQuestionModel), minimumRows: 1, maximumRows: 20)]
public List<SurveyQuestionModel> Questions = [];

// Inside QuestionModel:
[DisplayCondition("question_type == choice"),
 Repeater(repeaterFor: typeof(SurveyChoiceModel), minimumRows: 2, maximumRows: 8)]
public List<SurveyChoiceModel>? Choices = null;

Individual Sharing (Shareable Entity Types)

Entity types can opt into per-entity access control by setting HasIndividualSharing = true. This enables:

• Per-entity sharing — Each entity instance can be shared with specific users and/or roles at view or edit permission levels
• Public toggle — Entities can be marked public so anyone with entity-type-level access can view them
• Owner-based access — The entity author is always the owner with full control
• Auto-generated admin role — A "{ReadableName} Admin" role is automatically created and maintained at startup, granting full access to all entities of that type
• Entity locking — Lock checks respect sharing permissions (only users with edit access can lock)
• Dedicated frontend pages — Sharing entities use custom pages (set via CustomFrontendListRoute) instead of the generic entity list/edit pages

// 1. Create a fields model inheriting from SharableEntityFieldsModel
public class ProjectModel : SharableEntityFieldsModel
{
    [JsonProperty("description"),
     TextArea(label: "Description", instructions: "", mandatory: true,
        placeholderText: "Describe the project...")]
    public string Description = "";

    [JsonProperty("status"),
     Select(label: "Status", instructions: "",
        defaultValue: "active",
        choices: new[] { "active", "archived" })]
    public string Status = "active";
}

// 2. Register with HasIndividualSharing = true
new EntityConfigurationBuilder<ProjectModel>
{
    EntityName = "project",
    EntityReadableNameSingular = "Project",
    EntityReadableNamePlural = "Projects",
    SupportsFrontendEdit = true,
    HasAuthor = true,  // Required for sharing
    HasTags = false,
    HasCategories = false,
    HasParentChildRelationship = false,
    RequireGlobalTitleUniqueness = false,
    OptionalTitleSanityCheck = null,
    HasIndividualSharing = true,
    CustomFrontendListRoute = "/projects",
}

The framework then automatically:

• Adds is_public, shared_users, and shared_roles fields (inherited from SharableEntityFieldsModel)
• Creates a "Project Admin" IAM role with full CRUD capabilities on the entity type
• Filters PEEK_ALL results to only entities the user can access (owned, shared, or public)
• Enforces per-entity READ/UPDATE/DELETE access checks
• Strips sharing fields from UPDATE requests for non-owners
• Exposes SHARING_CANDIDATES operation returning eligible users and roles
• Exposes has_individual_sharing and custom_frontend_list_route in the schema for frontend navigation

Development (this repo)

Running the sample app

# Backend
cd ReflectiveForms.Sample1 && dotnet run   # http://localhost:9000

# Frontend
cd ReflectiveForms.Frontend && npm install && npm run dev   # http://localhost:3000/

# Login: admin@karasoftware.com / 123456

Building the frontend library

cd ReflectiveForms.Frontend
npm run build:lib   # Outputs to dist/

License

AGPL-3.0 — See LICENSE for details.
