DebugProbe.AspNetCore

DebugProbe.AspNetCore is a lightweight ASP.NET Core debugging tool for inspecting HTTP traffic directly inside your application.

It captures request and response data, exposes a local dashboard, and helps compare traces across environments so you can spot differences between local, staging, and other API runs.

Version Compatibility

DebugProbe.AspNetCore Target framework Compatible application versions
2.x (starting with 2.0.0) net10.0 .NET 10 and later compatible .NET versions
1.x targeting net8.0 (for example, 1.6.10) net8.0 .NET 8, .NET 9, and later compatible .NET versions

Version 2.0.0 requires .NET 10 and ASP.NET Core 10. Building this repository requires the .NET 10 SDK. Applications staying on .NET 8 or .NET 9 should use a compatible 1.x release, such as 1.6.10:

dotnet add package DebugProbe.AspNetCore --version 1.6.10

Compatibility does not extend Microsoft's support lifecycle for the application's .NET runtime. Version 2.0.0 also contains breaking configuration and API changes described below.

Install

dotnet add package DebugProbe.AspNetCore

Quick Start

using DebugProbe.AspNetCore.Extensions;

var builder = WebApplication.CreateBuilder(args);
builder.Services.AddDebugProbe();

var app = builder.Build();
app.UseDebugProbe();
app.MapGet("/hello", () => "Hello!");
app.Run();

Start your application and open:

http://localhost:{port}/debug

In Production, DebugProbe captures traces but does not register UI endpoints unless explicitly enabled. DebugProbe does not require authentication by default.

Optional Configuration

builder.Services.AddDebugProbe(options =>
{
    options.MaxRequests = 10;

    options.MaxBodySizeKb = 256;

    options.AllowLocalCompareTargets = true;

    options.AllowUiInProduction = false;

    options.CaptureOutgoingRequests = true;

    options.ExcludedPaths =
    [
        ..options.ExcludedPaths,
        "/api/auth/login",
        "/api/auth/refresh"
    ];

    options.RedactedHeaders =
    [
        ..options.RedactedHeaders,
        "X-Api-Key",
        "X-Auth-Token"
    ];

    options.RedactedQueryParameters =
    [
        "api_key",
        "access_token"
    ];

    options.RedactedJsonFields =
    [
        "password",
        "refreshToken"
    ];
});

app.UseDebugProbe();

Configure options in AddDebugProbe; UseDebugProbe() only enables the middleware and endpoints.

  • Enabled = false disables capture and all DebugProbe endpoints.
  • MaxBodySizeKb = 0 disables all body capture. Headers and request metadata are still captured.
  • CaptureRequestBody and CaptureResponseBody independently control incoming and outgoing bodies (both default to true).
  • SlowRequestThreshold = TimeSpan.FromSeconds(1) controls slow badges; TimeSpan.Zero disables them.
  • ExcludedPaths replaces the defaults. Use [..options.ExcludedPaths, "/other"] to extend them, or [] to capture all application paths.
  • RoutePrefix defaults to "/debug" and applies to the dashboard, assets, APIs, and compare page (/debug/compare).

Standard .NET options configuration is also supported:

using DebugProbe.AspNetCore.Options;

builder.Services.AddDebugProbe();
builder.Services.Configure<DebugProbeOptions>(builder.Configuration.GetSection("DebugProbe"));

Body capture uses the same rules for incoming and outgoing requests and responses:

  • The size limit applies to original body bytes; oversized text keeps a prefix followed by [truncated].
  • Text uses the declared charset, with UTF-8 as the fallback; truncation does not leave a partial encoded character.
  • Binary content is represented by [Body not captured: non-text content]; empty or disabled bodies are empty strings.
  • If JSON field redaction is configured, truncated content is omitted because incomplete JSON cannot be reliably redacted.
  • Captured JSON is redacted before storage and formatted for display. Application payloads remain intact.

Options are validated at startup. Configuration is fixed for the application's lifetime.

Migrating from 1.x to 2.0

  • Upgrade the application to .NET 10 before installing version 2.0.0.
  • Configure DebugProbe in builder.Services.AddDebugProbe(...), before builder.Build(); replace app.UseDebugProbe(options => ...) with app.UseDebugProbe().
Previous option Replacement
MaxEntries MaxRequests
MaxBodyCaptureSizeKb MaxBodySizeKb
IgnorePaths ExcludedPaths
CaptureOutgoingHttpClientRequests CaptureOutgoingRequests
SlowRequestThresholdMs = 1000 SlowRequestThreshold = TimeSpan.FromSeconds(1)

TrendLookbackMinutes, AutoEnvironmentDiff, and RedactionText have been removed. Sensitive values use the fixed [REDACTED] marker; trace comparison remains available manually.

ExcludedPaths now contains editable defaults. Assigning an array replaces them; use [..options.ExcludedPaths, "/other"] to extend them. DebugProbe endpoints remain excluded automatically.

Additional API and behavior changes:

  • DebugEntryStore.Instance has been removed; resolve the store through dependency injection when needed.
  • OutgoingRequests is a concurrent queue: use Enqueue(...) instead of Add(...).
  • ExceptionGroups returns an IReadOnlyDictionary snapshot instead of a mutable concurrent dictionary.
  • The compare page moved from /compare to /debug/compare (or {RoutePrefix}/compare); update bookmarks and links. Remote trace comparison currently uses the same route prefix on both applications.
  • Oversized text now keeps a prefix with [truncated] instead of [Body too large]. When JSON field redaction is configured, truncated content is omitted.
  • Captured outgoing JSON is stored without pretty-printing and formatted for display, matching incoming capture.

For endpoint authorization, see Security Defaults below.

Features

  • Request inspection
  • Response inspection
  • Headers, query string, and body capture
  • Error visibility
  • Local debugging dashboard
  • Trace comparison across runs or environments
  • JSON formatting for captured payloads
  • Configurable body capture limits
  • Ignored path configuration for noisy or sensitive endpoints
  • Configurable redaction for sensitive headers, query parameters, and JSON fields
  • Optional ASP.NET Core authorization policy protection for DebugProbe endpoints
  • Optional outgoing HttpClient request tracing

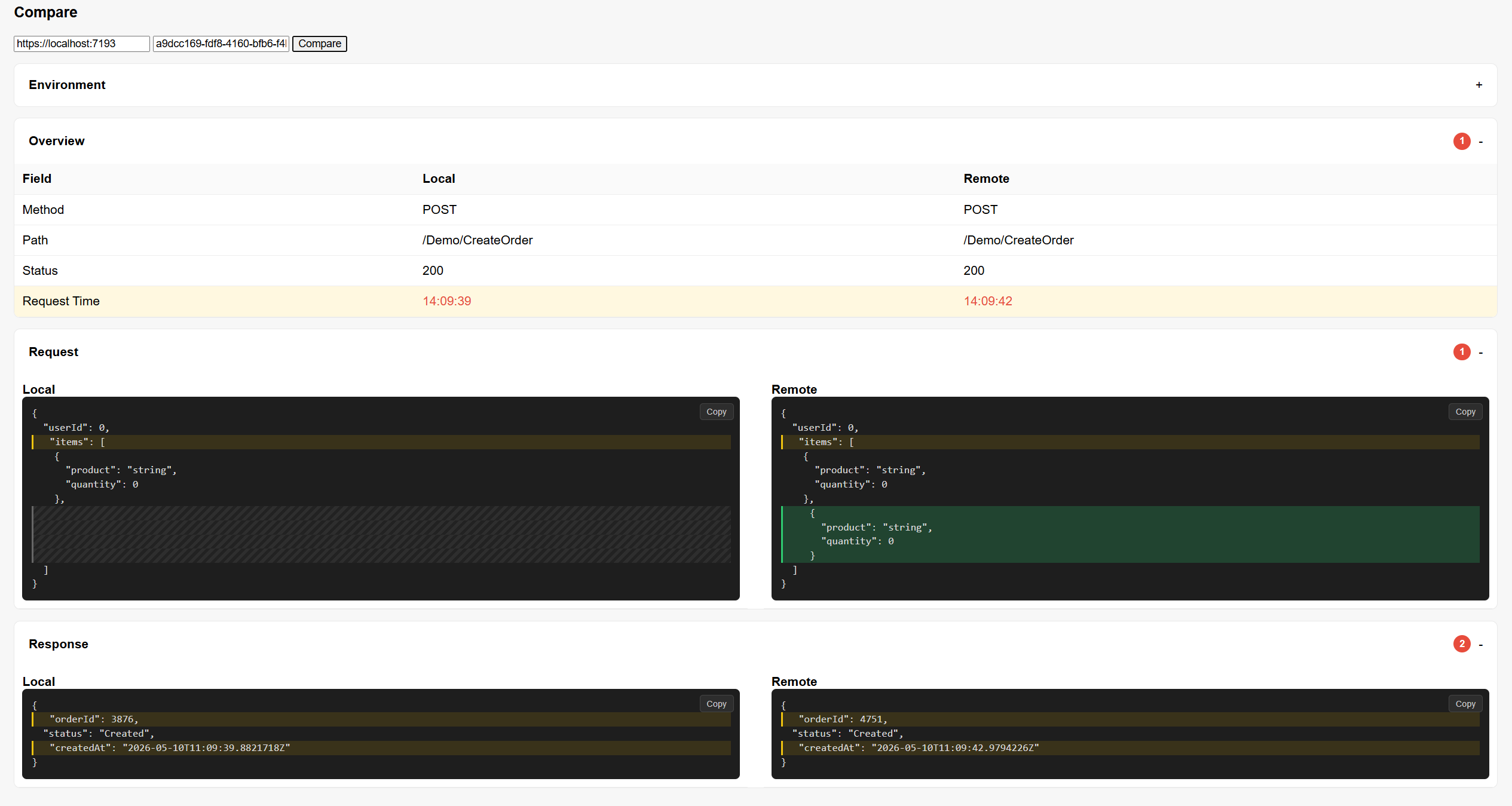

Trace Compare

DebugProbe can compare a local trace with a trace captured by another DebugProbe-enabled application.

Typical workflow:

  1. Run both applications with DebugProbe enabled.
  2. Open the local dashboard at /debug.
  3. Open the trace you want to compare.
  4. Use the compare action and provide the remote application's base URL and trace ID.

Compare is useful when checking differences between local and remote environments, repeated runs, or two versions of the same API flow.

Dynamic values such as IDs, timestamps, tokens, and selected headers are normalized so the compare view focuses on meaningful request and response differences.

Security Defaults

DebugProbe UI endpoints are disabled by default in Production. Capture and trace storage continue to run, but the dashboard, trace viewer, compare UI, UI assets, and UI clear action are not registered unless explicitly enabled:

builder.Services.AddDebugProbe(options =>
{
    options.AllowUiInProduction = true;
});

DebugProbe does not require authentication by default. If you expose DebugProbe outside local development, configure an ASP.NET Core authorization policy and require it for DebugProbe endpoints:

builder.Services.AddAuthorization(options =>
{
    options.AddPolicy("DebugProbePolicy", policy =>
    {
        policy.RequireAuthenticatedUser();
        policy.RequireRole("Admin");
    });
});

builder.Services.AddDebugProbe(options =>
{
    options.AuthorizationPolicy = "DebugProbePolicy";
});

app.UseAuthentication();
app.UseAuthorization();
app.UseDebugProbe();

DebugProbe masks common sensitive headers automatically:

  • Authorization
  • Cookie
  • Set-Cookie

You can also configure application-specific values to redact before traces are stored:

builder.Services.AddDebugProbe(options =>
{
    options.RedactedHeaders =
    [
        ..options.RedactedHeaders,
        "X-Api-Key",
        "Client-Secret"
    ];

    options.RedactedQueryParameters = ["token", "api_key", "access_token"];

    options.RedactedJsonFields = ["password", "secret", "refreshToken"];
});

Intended Usage

DebugProbe is designed primarily for local development and controlled development environments.

If you use it outside local development, protect the dashboard with authentication, restrict network access, and avoid capturing sensitive endpoints or payloads.

Documentation

For full setup details, screenshots, dashboard behavior, configuration options, and live examples, see the documentation:

https://debugprobe.dev/docs

Contributing

Contributions are welcome. Please read CONTRIBUTING.md before opening an issue or pull request.

License

DebugProbe.AspNetCore is licensed under the Apache License 2.0.
