OpsToolkit.Hangfire.JobControl 0.9.1

OpsToolkit.Hangfire

Hangfire provides the scheduling and execution engine, together with basic operational controls. OpsToolkit.Hangfire adds the durable governance, runtime control, and long-running-job supervision needed for business-critical production workflows.

When jobs carry operational, financial, or customer impact, teams need more than queue visibility and manual action buttons. They need changes that survive deployments, a record of who intervened and why, and evidence that a long-running job is still making progress.

Install

dotnet add package OpsToolkit.Hangfire.JobControl

View OpsToolkit.Hangfire.JobControl on NuGet.org.

Quick start

var jobControl = new JobControlOptions();

builder.Services.AddHangfire(configuration => configuration
    .UsePostgreSqlStorage(/* ... */)
    .UseJobControl(jobControl));

builder.Services.AddJobControlStallDetector(jobControl); // optional: [Heartbeat] stall detection

app.MapJobControl(
    viewPolicy: "CanViewJobs",
    managePolicy: "CanManageJobs",
    apiBase: "/hangfire/api",
    options: jobControl,
    actorProvider: context =>
        context.User.FindFirst("email")?.Value ?? "unknown");

UseJobControl() installs the server-side enforcement filters. MapJobControl() maps the recurring and run APIs plus both operator UIs. AddJobControlStallDetector() monitors [Heartbeat] jobs for stalled progress. Pass the same options to each registration.

Schedule and parameter overrides require recurring jobs to be declared through a RecurringJobRegistrar:

var registrar = new RecurringJobRegistrar();
var jobControl = new JobControlOptions { Registrar = registrar };

registrar.Register<ReportingJobs>("nightly-report", x => x.Run(), Cron.Daily());
registrar.Apply(JobStorage.Current, jobControl);

Without a registrar, all other capabilities remain available; the override and invoke endpoints return 501 and their UI controls are hidden. See Recurring Jobs control for rollout and reconciliation guidance.

apiBase is the shared API root: recurring-job endpoints are under {apiBase}/recurring and run endpoints under {apiBase}/runs. The default pages are:

• /hangfire/job-control/recurring — recurring-job controls and history
• /hangfire/job-control/runs — run monitoring, details, and actions
• /hangfire/job-control — redirect to the recurring-jobs page

The view authorization policy protects reads and both UIs. The manage policy protects every mutation.

The enterprise operations gap

The first module, OpsToolkit.Hangfire.JobControl, provides these controls through two embedded operator UIs. Both UIs ship with the package and require no frontend build.

What it provides

1. Audit trail for operator intervention

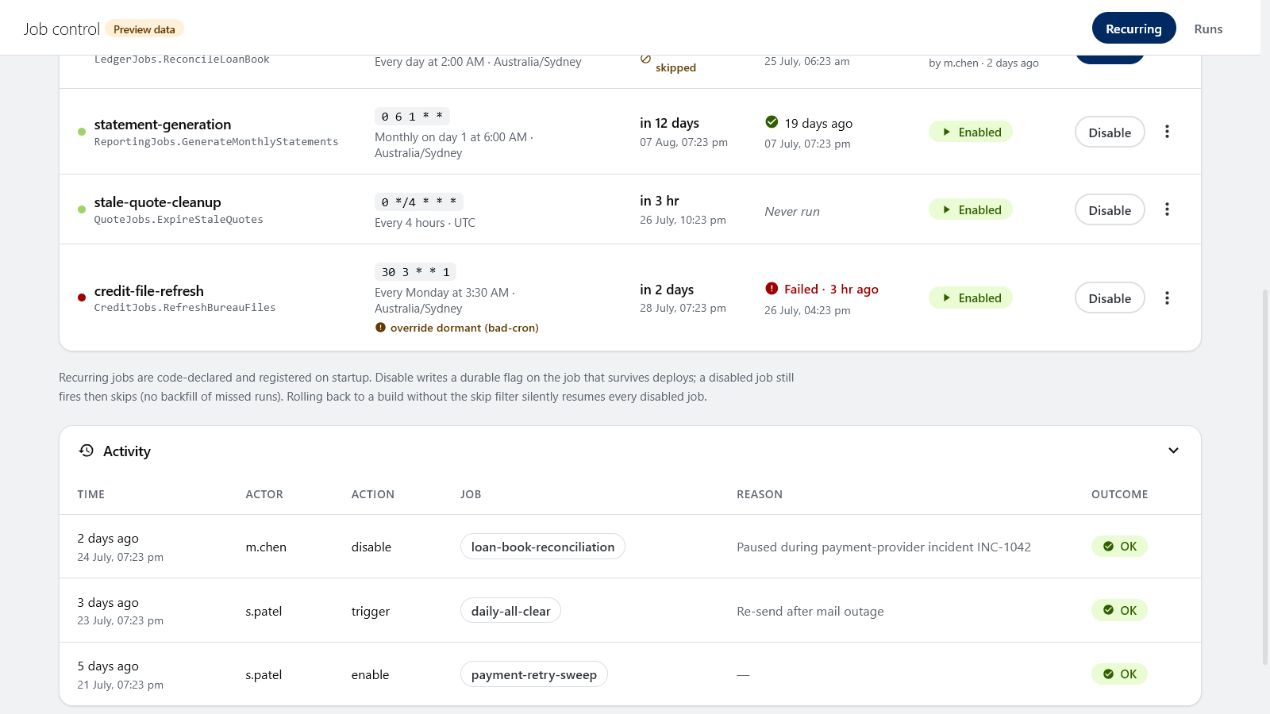

Every OpsToolkit intervention records its UTC timestamp, actor, action, job, reason, outcome, and relevant details. Entries are retained in Hangfire storage up to a configurable count, with no toolkit schema or cleanup job. Expected-state checks and per-job locks reject stale or concurrent actions.

2. Long-running job support

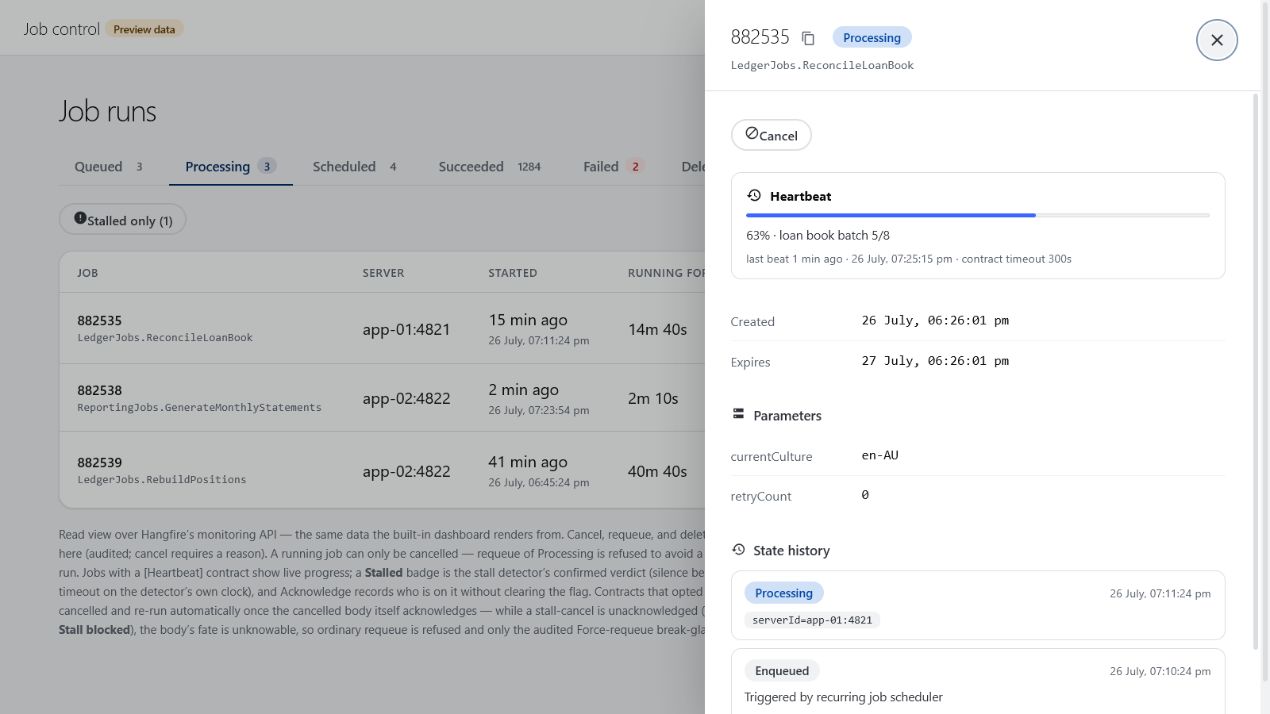

Add [Heartbeat] to a long-running job and call context.Beat() after real work completes. The Job Runs UI displays heartbeat and progress data, while the stall detector flags stopped progress. Operators can cancel jobs in any active state; processing jobs must observe a CancellationToken or IJobCancellationToken. Retry-on-stall is opt-in and governed by a per-job budget.

3. Persisted runtime parameter and cron overrides

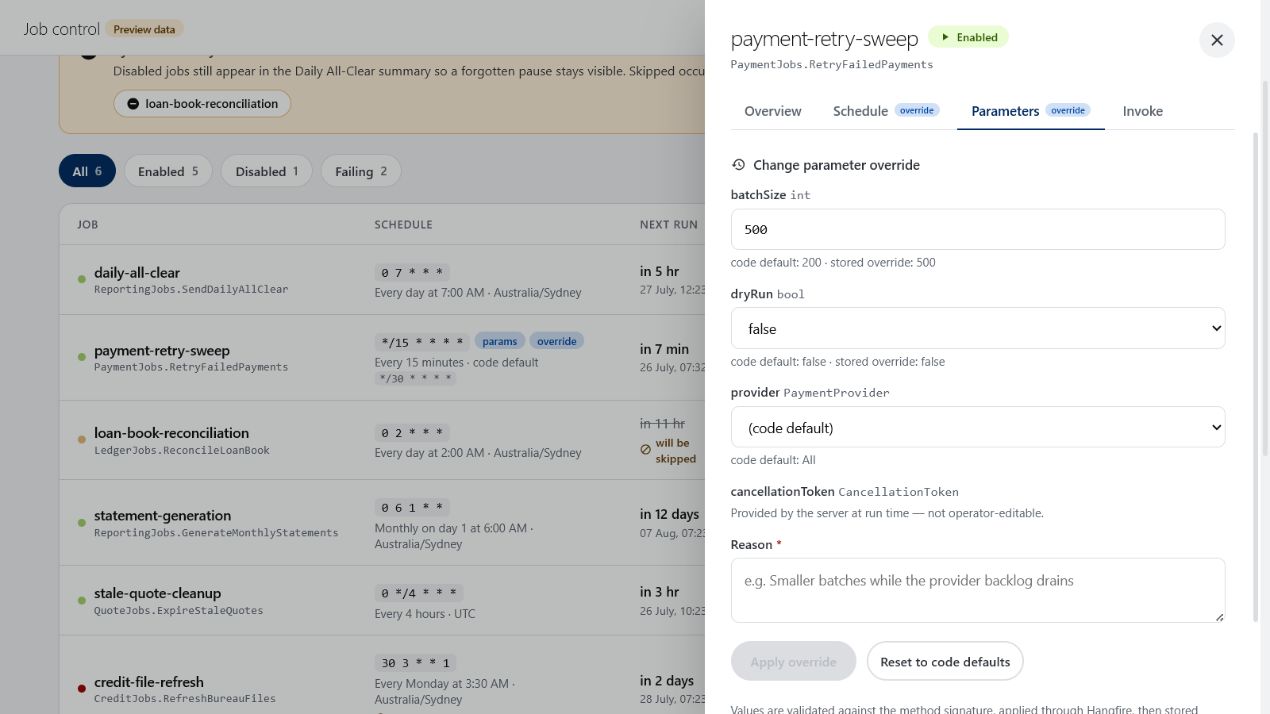

Operators can change recurring-job parameters or cron schedules without deploying code. Overrides are validated against the deployed job definition, stored in Hangfire, and applied as operator override ?? code default. Operators can reset either override independently, reconcile defaults on demand, or invoke a one-off run with edited values.

4. Persisted disable

Disabling a recurring job requires a reason and persists across restarts and RecurringJob.AddOrUpdate. It does not stop a run already in progress or backfill skipped occurrences when re-enabled. Use Job Runs to cancel active work; manual invoke remains available as the explicit force-run path.

Configuration

var options = new JobControlOptions
{
    AuditMaxEntries = 10_000,
    AuditDefaultReadLimit = 200,
    RunsDefaultPageSize = 50,
};

JobControlOptions can be shared by web and worker hosts. Configure actor extraction through the endpoint mappers' actorProvider parameter; it defaults to HttpContext.User.Identity?.Name ?? "unknown".

OpsToolkit state lives in Hangfire storage, so hosts need no toolkit schema or migration. Processing job cancellation is cooperative: the job must observe a CancellationToken or IJobCancellationToken. Otherwise, it may complete after Hangfire moves it to Deleted, which OpsToolkit records as completed-anyway.

Use Hangfire Dashboard in read-only mode

OpsToolkit governance applies only to mutations made through its APIs. In governed deployments, map Hangfire's native Dashboard as read-only so its delete and requeue actions cannot bypass required reasons, audit records, locking, and cancellation acknowledgment:

app.MapHangfireDashboard("/hangfire", new DashboardOptions
{
    Authorization = new[] { new HostDashboardAuthorizationFilter() },
    IsReadOnlyFunc = _ => true,
});

Read-only mode is not a security boundary. Application code, other services, and storage administrators can still mutate Hangfire state directly; every writer sharing the storage must follow the same governance protocol.

Split deployments

In a web/worker split, integrate OpsToolkit in both processes against the same Hangfire storage:

Use the same JobControlOptions values in both processes. Put recurring-job declarations in a shared assembly and run registrar.Apply(...) once, normally in the worker whose code defaults are authoritative.

Feature documentation

• Operator audit trail
• Long-running job liveness: heartbeat, progress, stall detection, and governed retry
• Job Runs dashboard and cancellation
• Recurring Jobs control
• Liveness design: the two-layer model, the retry state machine, and rejected alternatives

Run the demo

cd tests/OpsToolkit.Hangfire.Host
docker compose -f docker-compose.postgres.yaml up -d
dotnet run

Open the built-in Hangfire dashboard or either toolkit page at the address printed by the host.

License

MIT - see LICENSE.
