BufferQueue 2.0.2

BufferQueue

English | 简体中文

BufferQueue is a typed, topic-based in-process queue for concurrent producers and partitioned batch consumers. The core package includes segmented Memory storage, consumer groups, pull and push consumers, and auto or manual commit.

BufferQueue targets .NET 8 and .NET 10.

Install

dotnet add package BufferQueue

For local durable storage and restart recovery, install the optional BufferQueue.MemoryMappedFile package.

Register a Memory topic

using BufferQueue;
using BufferQueue.Memory;

builder.Services.AddBufferQueue(queue =>
{
    queue
        .UseMemory(memory =>
        {
            memory.AddTopic<Order>(topic =>
            {
                topic.TopicName = "orders";
                topic.PartitionNumber = 4;
                topic.UsePartitionKey(order => order.Id);

                // Optional. Memory topics are unbounded by default.
                topic.BoundedCapacity = 100_000;
                topic.FullMode = BufferQueueFullMode.Wait;
            });
        })
        .AddPushCustomers(typeof(Program).Assembly);
});

public sealed record Order(long Id, decimal Total);

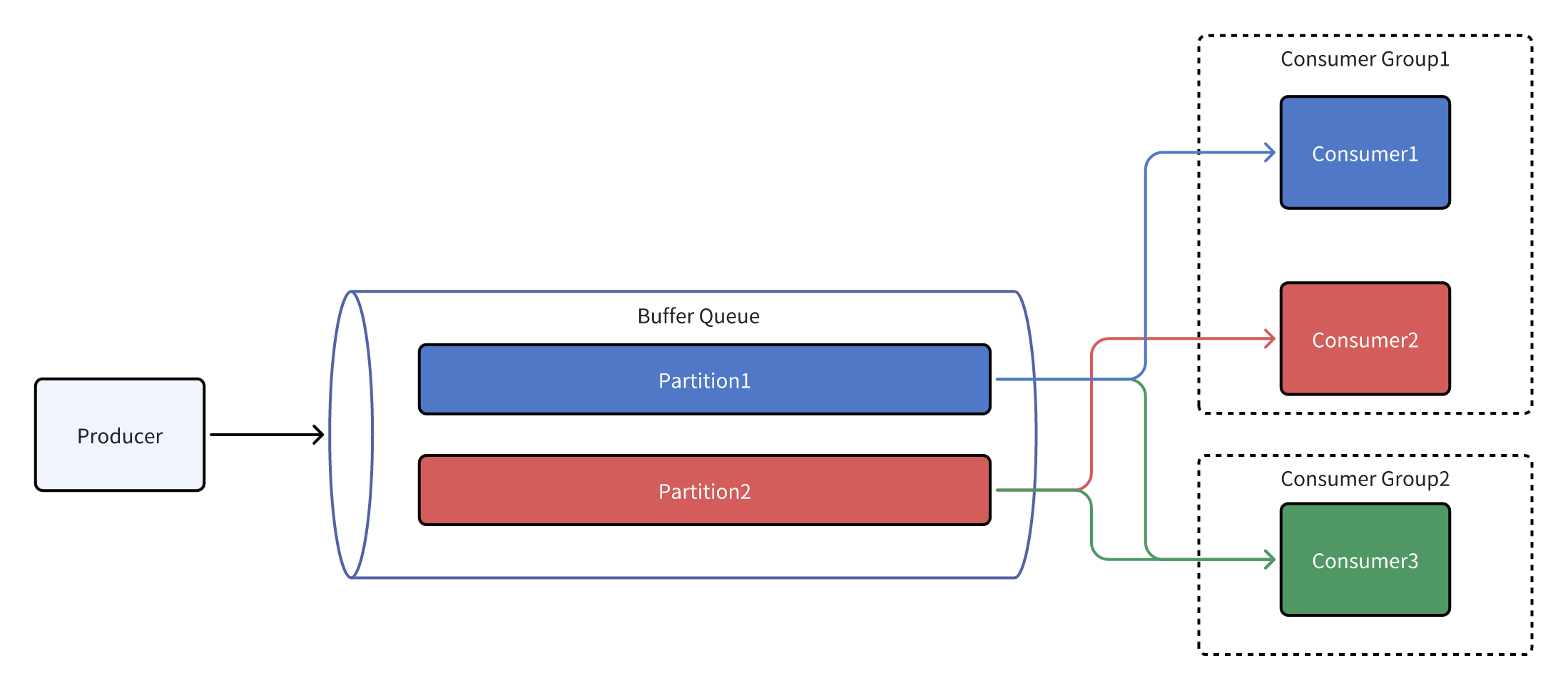

Each (message type, topic name) pair identifies one typed queue. A topic can have multiple partitions. Producer calls use round-robin routing by default.

UsePartitionKey requires a selector delegate. Numeric selectors support the built-in INumber<TNumber> types when their result is a finite integer; they route with the normalized mathematical modulo of (key - 1) and PartitionNumber, so zero and negative keys are accepted. String selectors use only the first four UTF-16 characters to choose a partition. Equal keys are routed to the same partition and retain their per-partition order; different keys can share a partition. Omit the call to retain round-robin routing. The selector must be deterministic and safe for concurrent calls. In Memory mode, concurrent producers can append to different key-selected partitions in parallel; appends to the same partition remain serialized.

Batch production applies the same routing to every item. A round-robin batch is not assigned to one partition: selection advances once per item. A key-routed batch runs its selector for every item and preserves equal-key input order in the selected partition. Ordering remains per partition rather than global across the batch.

In Memory storage, a default round-robin batch reserves its complete selection range before appending the input slices for each selected partition. This keeps per-item routing unchanged while allowing those slices to append under their own partition locks.

Produce

A fixed topic can be injected as a keyed IBufferProducer<T>:

using BufferQueue;
using Microsoft.Extensions.DependencyInjection;

public sealed class OrderWriter(
    [FromKeyedServices("orders")] IBufferProducer<Order> producer)
{
    public ValueTask WriteAsync(Order order, CancellationToken cancellationToken = default) =>
        producer.ProduceAsync(order, cancellationToken);
}

For a topic selected at runtime, inject IBufferQueue and call GetProducer<T>(topicName).

IBufferProducer<T> directly exposes four core methods, each with an optional CancellationToken:

ValueTask<bool> TryProduceAsync(T item, CancellationToken cancellationToken = default);
ValueTask<bool> TryProduceAsync(ReadOnlyMemory<T> items, CancellationToken cancellationToken = default);
ValueTask ProduceAsync(T item, CancellationToken cancellationToken = default);
ValueTask ProduceAsync(ReadOnlyMemory<T> items, CancellationToken cancellationToken = default);

BufferProducerExtensions provides only the IEnumerable<T> convenience overloads, which also accept a cancellation token:

CancellationToken cancellationToken = default;
ReadOnlyMemory<Order> bufferedOrders = pendingOrders.AsMemory();

await producer.ProduceAsync(bufferedOrders, cancellationToken);
var accepted = await producer.TryProduceAsync(bufferedOrders, cancellationToken);

IEnumerable<Order> ordersFromAnEnumerable = GetPendingOrders();
await producer.ProduceAsync(ordersFromAnEnumerable, cancellationToken);

Use ReadOnlyMemory<T> when the source is already contiguous or can be exposed as memory. It is the allocation-conscious core form because it avoids the input materialization required by a non-array IEnumerable<T>. The IEnumerable<T> form is convenient but materializes a non-array input before batch submission. The single-item and ReadOnlyMemory<T> ProduceAsync methods are core interface methods, not extensions.

On a bounded Memory topic, FullMode defaults to Wait: both ProduceAsync and TryProduceAsync asynchronously wait until capacity is available, and TryProduceAsync returns true after the complete input is accepted. Supply a cancellation token so that the backpressure wait can be canceled. Set FullMode to Fail when immediate rejection is required; ProduceAsync then throws BufferQueueFullException, while TryProduceAsync returns false. A batch no larger than the configured capacity is admitted as a whole. A larger Wait batch is split into consecutive capacity-sized slices; each slice is admitted as a whole, and cancellation can leave prior completed slices visible. Fail rejects an oversized batch as a whole. The capacity limit is shared by every partition. Each partition returns capacity as the minimum committed position across all known consumer groups advances, including within a segment, so a slow group can hold capacity after another group commits. A group created later starts at the current logical earliest position and cannot read records whose capacity has already been released.

Consume in batches

This example uses manual commit, so progress advances only after the batch has been processed successfully:

using BufferQueue;
using Microsoft.Extensions.Hosting;

public sealed class OrderWorker(IBufferQueue queue) : BackgroundService
{
    protected override async Task ExecuteAsync(CancellationToken stoppingToken)
    {
        var consumer = queue.CreatePullConsumer<Order>(
            new BufferPullConsumerOptions
            {
                TopicName = "orders",
                GroupName = "order-fulfillment",
                BatchSize = 100,
                AutoCommit = false
            });

        await foreach (var batch in consumer.ConsumeAsync(stoppingToken))
        {
            foreach (var order in batch)
            {
                await ProcessAsync(order, stoppingToken);
            }

            await consumer.CommitAsync();
        }
    }

    private static Task ProcessAsync(Order order, CancellationToken cancellationToken)
    {
        // Replace with application processing.
        return Task.CompletedTask;
    }
}

Use CreatePullConsumers<T>(options, consumerNumber) to distribute a consumer group's partitions across multiple consumers. The consumer count cannot exceed the topic's partition count.

Push consumers

AddPushCustomers in the registration example scans the specified assembly for classes marked with BufferPushCustomerAttribute and starts their consumption loops as hosted services.

An auto-commit Push Consumer receives batches without managing the commit operation itself:

using BufferQueue.PushConsumer;
using Microsoft.Extensions.DependencyInjection;

[BufferPushCustomer(
    topicName: "orders",
    groupName: "order-indexing",
    batchSize: 100,
    serviceLifetime: ServiceLifetime.Singleton,
    concurrency: 4)]
public sealed class OrderIndexConsumer : IBufferAutoCommitPushConsumer<Order>
{
    public async Task ConsumeAsync(
        IEnumerable<Order> batch,
        CancellationToken cancellationToken)
    {
        foreach (var order in batch)
        {
            await IndexAsync(order, cancellationToken);
        }
    }

    private static Task IndexAsync(Order order, CancellationToken cancellationToken)
    {
        // Replace with application processing.
        return Task.CompletedTask;
    }
}

Auto commit advances queue progress before application processing. Use a manual commit Push Consumer when a failed batch must remain eligible for replay:

using BufferQueue.PushConsumer;
using Microsoft.Extensions.DependencyInjection;

[BufferPushCustomer(
    topicName: "orders",
    groupName: "billing",
    batchSize: 100,
    serviceLifetime: ServiceLifetime.Scoped,
    concurrency: 4)]
public sealed class BillingConsumer : IBufferManualCommitPushConsumer<Order>
{
    public async Task ConsumeAsync(
        IEnumerable<Order> batch,
        IBufferConsumerCommitter committer,
        CancellationToken cancellationToken)
    {
        foreach (var order in batch)
        {
            await BillAsync(order, cancellationToken);
        }

        await committer.CommitAsync();
    }

    private static Task BillAsync(Order order, CancellationToken cancellationToken)
    {
        // Replace with application processing.
        return Task.CompletedTask;
    }
}

The concurrency value creates that many consumers in the group and cannot exceed the topic's partition count.

A Singleton Push Consumer is reused across batches and concurrent consumer loops, so it must be thread-safe. Scoped and Transient Push Consumers are resolved in a new asynchronous DI scope for every batch and are disposed after the handler completes or throws.

Semantics

• Memory topics and their consumer offsets exist only for the lifetime of the process.
• Each consumer group has independent progress and receives the topic's messages.
• Consumers in the same group divide partitions between them.
• Ordering is preserved within a partition, not globally across partitions.
• BatchSize is an upper bound; a returned batch may contain fewer items.
• Manual commit provides at-least-once delivery; an uncommitted batch may be delivered again.
• Auto commit advances progress after a successful pull, before application processing.
• Consumer count is fixed when a group is created and cannot exceed the partition count.
