Majorsoft.Blazor.Components.Inputs 2.2.0

Blazor Components Inputs controls

About

Blazor components that renders an HTML <input>, <textarea> elements also extending InputText and InputTextArea Blazor provided components with maxlength set and counter to show remaining characters. The package also ships a MarkdownEditor and a Word-like RichTextEditor that share a customizable sectioned toolbar and a Markdown engine. All components work with WebAssembly and Server hosted models. For code examples see usage.

You can try it out by using the demo app.

Components

• MaxLengthInput: wraps and renders HTML <input> field and sets maxlength property with notification onChange.
• MaxLengthInputText: extends InputText Blazor provided component (it supports form validation and @bind-Value=) and sets maxlength property with notification onChange.
• MaxLengthTextarea: wraps and renders HTML <textarea> field and sets maxlength property with notification onChange.
• MaxLengthInputTextArea: extends InputTextArea Blazor provided component (it supports form validation and @bind-Value=) and sets maxlength property with notification onChange.
• MarkdownEditor: Markdown source editor with a customizable sectioned toolbar and a live HTML preview (Edit / Split / Preview views).
• RichTextEditor: Word-like WYSIWYG editor that applies formatting inline on a contenteditable surface while keeping the bound value as Markdown, so it round-trips cleanly with MarkdownEditor.
• PasswordInput: secret text input with a customizable mask character (dot, star, bullet, etc.), a customizable layout and a reveal (eye) button that shows or hides the entered value.

MaxLengthInput and MaxLengthInputText components

Blazor components that are wrapping around standard HTML <input>, <textarea> elements and sets maxlength property with notification onChange. Can fit for any Blazor App e.g. when DB field has limited length and on UI same limited chars should be set. And on each chars entered the remaining allowed chars counter will be shown.

MaxLengthTextarea and MaxLengthInputTextArea components

Blazor components that are wrapping around standard exiting Blazor components. Rendered HTML result will be standard <input>, <textarea> as well. Can fit for any Blazor App but use this only when you need Blazor provided FROM validation as well.

Properties

All components have exactly the same features only rendering different HTML elements, hence they have the same properties, events and functions as well.

• Value: string? { get; set; } <br /> Value of the rendered HTML element. Initial field value can be set to given string or omitted (leave empty). Also control actual value can be read out. <br />* Note: in case of DebounceInputText and DebounceInputTextArea this property is inherited from Blazor component and requires slightly different code with @bind, see usage example differences.
• MaxAllowedChars: int { get; set; } (default: 50) <br /> Maximum allowed characters to type in.
• CountdownText: string { get; set; } (default: "Remaining characters: ") <br /> Countdown label text to change or localize message.
• ShowRemainingChars: bool { get; set; } (default: true) <br /> Should show remaining character values at the end of the CountdownText or not. Note: RemainingCharacters value can be acquired from OnRemainingCharsChanged event parameter.
• CountdownTextClass: string { get; set; } (default: "") <br /> Countdown label and value CSS class property to style message.
• InnerElementReference: ElementReference { get; } <br /> Exposes a Blazor ElementReference of the wrapped around HTML element. It can be used e.g. for JS interop, etc.

Arbitrary HTML attributes e.g.: id="input1" class="form-control w-25" will be passed to the corresponding rendered HTML element <input> or <textarea>.

<MaxLengthInput
	id="in1"
	class="form-control w-25"
	placeholder="@($"You can type maximum: {_maxLengthInputTextAreaAllowed} char(s)")"
	... />

Will be rendered to:

<input id="in1" class="form-control w-25" placeholder="You can type maximum: 20 char(s)" ... />

Events

• OnValueChanged: EventCallback<string> delegate <br /> Callback function called when value was changed.
• OnRemainingCharsChanged: EventCallback<int> delegate <br /> Callback function called when HTML control received keyboard inputs remaining allowed chars calculated and sent as even args. Can be used to style or change the Countdown message.

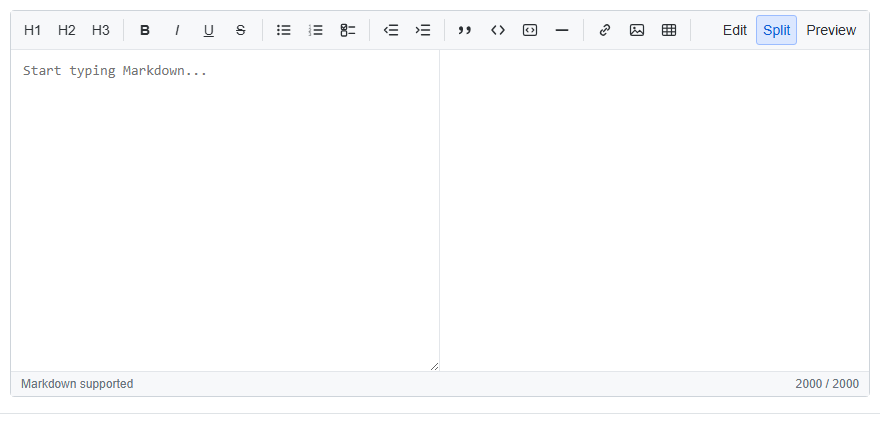

MarkdownEditor and RichTextEditor components

Two editors that share one sectioned, Tooltip-powered toolbar and a dependency-free Markdown engine, so content round-trips cleanly between them. The MarkdownEditor edits Markdown source with a live preview; the RichTextEditor is a Word-like WYSIWYG surface whose bound Value is always Markdown.

The toolbar is split into independently toggleable sections: Headings, Text style (bold, italic, underline, strikethrough), Lists (bullet, numbered, task), Indentation (decrease / increase), Blocks (quote, inline code, code block, horizontal rule) and Insert (link, image, table). In the RichTextEditor the Insert buttons open a small Popover (anchored under the icon) to enter the link text/URL, image URL or table dimensions; pressing Enter accepts and Esc closes it.

* Note: the editors render the Popover from the Tooltips package, which relies on the JS interop services. Register them once in your host app(s): services.AddJsInteropExtensions();

Styles

The editor CSS ships in the package; link it once (e.g. in index.html / App.razor / _Host.cshtml):

<link rel="stylesheet" href="_content/Majorsoft.Blazor.Components.Inputs/editor.css" />

Shared properties

Both editors expose the same set of common properties:

• Value: string? { get; set; } — the Markdown text. Supports two-way binding via @bind-Value.
• Placeholder: string { get; set; } — hint shown when the editor is empty.
• Disabled: bool { get; set; } (default: false) — disables input and all toolbar actions.
• ReadOnly: bool { get; set; } (default: false) — content is read only (toolbar actions disabled too).
• SpellCheck: bool { get; set; } (default: true) — toggles the browser native spellchecker.
• ShowToolbar: bool { get; set; } (default: true) — shows/hides the whole toolbar.
• ShowHeadingSection / ShowTextStyleSection / ShowListSection / ShowIndentSection / ShowBlockSection / ShowInsertSection: bool { get; set; } (default: true) — show/hide individual toolbar sections.
• ShowFooter: bool { get; set; } (default: true) — shows/hides the footer (hint + counter).
• ShowButtonTooltips: bool { get; set; } (default: true) — each button shows a Tooltip; otherwise a native title.
• CustomToolbarContent: RenderFragment? { get; set; } — extra toolbar content rendered as an additional section.
• FooterText: string { get; set; } — text shown on the left side of the footer.
• Class / Style / ToolbarClass / EditorClass: string? { get; set; } — custom CSS class(es) / inline style for the root, toolbar and editing surface.
• InnerElementReference: ElementReference { get; } — the wrapped editing element (the <textarea> for Markdown, the contenteditable for RichText).

Shared events and functions:

• ValueChanged: EventCallback<string?> — enables @bind-Value.
• OnInput: EventCallback<string?> — invoked on every edit with the new Markdown value.
• OnHtmlChanged: EventCallback<string> — invoked with the rendered HTML whenever the value changes.
• GetHtml(): string — returns the rendered HTML of the current value.
• FocusAsync(): Task — sets focus to the editing surface.

MarkdownEditor specific properties

• View: MarkdownEditorView { get; set; } (default: Edit) — which pane(s) are visible: Edit, Split or Preview. Supports two-way binding via @bind-View (ViewChanged).
• ShowViewSection: bool { get; set; } (default: true) — shows/hides the Edit / Split / Preview switch.
• VisibleRows: int { get; set; } (default: 8) — number of visible text rows of the source <textarea> (its rows attribute).
• MaxAllowedChars: int { get; set; } (default: 0) — when greater than 0 a maxlength is applied and a remaining-characters counter is shown.
• TabIndents: bool { get; set; } (default: true) and TabIndent: string { get; set; } (default: two spaces) — pressing Tab inserts TabIndent instead of moving focus.
• PreviewClass: string? { get; set; } — custom CSS class(es) for the rendered preview pane.

RichTextEditor specific properties

• Height: int { get; set; } (default: 0) — fixed editor height in pixels (toolbar + content + footer). When greater than 0 the content area scrolls once it overflows; when 0 the height is auto and grows with the content.
• Width: int { get; set; } (default: 0) — fixed editor width in pixels. When 0 the width is auto (it fills its container).

Usage

@using Majorsoft.Blazor.Components.Inputs

@* Link the editor stylesheet once in your app, e.g. in index.html / App.razor. *@
<link rel="stylesheet" href="_content/Majorsoft.Blazor.Components.Inputs/editor.css" />

<MarkdownEditor @bind-Value="_markdown"
                View="MarkdownEditorView.Split"
                VisibleRows="14"
                MaxAllowedChars="2000"
                Placeholder="Start typing Markdown..." />

<RichTextEditor @bind-Value="_markdown"
                Height="300"
                Placeholder="Start writing..." />

@code {
    private string _markdown = "# Hello\n\nThis is **shared** Markdown.";
}

Both editors are bound to the same _markdown value above, demonstrating that the WYSIWYG and Markdown representations share one format.

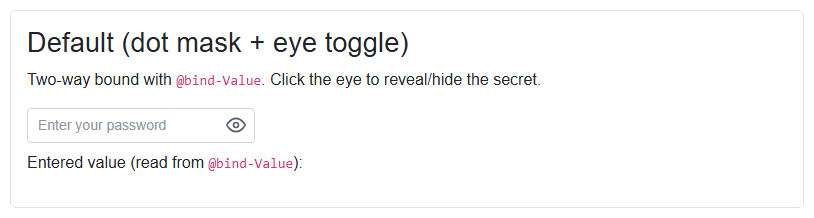

PasswordInput component

Blazor component that renders a secret text <input> with a customizable mask character, a customizable layout and a reveal (eye) button to show or hide the entered value. The real value is always kept in C# and exposed via @bind-Value (reading it always returns the plain text); while masked the input shows a run of the chosen mask character. Editing in the middle of the value, text selection, paste and delete are all supported because the real value is reconstructed from the caret position after each input.

Styles

PasswordInput ships a stylesheet in the package. Link it once in your app (e.g. index.html / App.razor):

<link rel="stylesheet" href="_content/Majorsoft.Blazor.Components.Inputs/passwordInput.css" />

All class names are prefixed with bpwd and every part is overridable via the Class, InputClass and RevealButtonClass parameters.

Properties

• Value: string? { get; set; } <br /> The secret value. Supports two-way binding via @bind-Value; reading it always returns the plain text.
• MaskCharacter: char { get; set; } (default: '●') <br /> Character used to mask the value while hidden, e.g. '●', '*' or '•'. Set to '\0' to disable masking.
• ShowPassword: bool { get; set; } (default: false) <br /> Whether the value is currently revealed (plain text) or masked. Supports two-way binding via @bind-ShowPassword.
• ShowRevealButton: bool { get; set; } (default: true) <br /> Whether the reveal (eye) button is rendered.
• ShowTitle / HideTitle: string { get; set; } <br /> Tooltip/aria-label shown on the reveal button while masked / revealed.
• Placeholder: string? { get; set; } <br /> Placeholder text shown when the input is empty.
• MaxLength: int { get; set; } (default: 0) <br /> Maximum allowed characters. 0 means unlimited.
• Disabled / ReadOnly: bool { get; set; } <br /> Standard disabled / read only states.
• AutoComplete: string { get; set; } (default: "new-password") <br /> Value of the rendered autocomplete attribute.
• Class / Style / InputClass / RevealButtonClass: string? { get; set; } <br /> CSS hooks to customize the wrapper, the <input> and the reveal button.
• ShowIconContent / HideIconContent: RenderFragment? <br /> Optional custom content for the reveal button replacing the default eye icons (masked / revealed state).
• AdditionalAttributes: Dictionary<string, object>? <br /> Arbitrary HTML attributes splatted onto the inner <input>.

Events

• ValueChanged: EventCallback<string?> — enables @bind-Value.
• OnInput: EventCallback<string?> — invoked on every input with the new plain value.
• ShowPasswordChanged: EventCallback<bool> — enables @bind-ShowPassword.

Functions

• FocusAsync() — sets focus to the inner <input>.
• TogglePasswordVisibilityAsync() — toggles between the masked and revealed states.

Usage

@using Majorsoft.Blazor.Components.Inputs

@* Link the stylesheet once in your app, e.g. in index.html / App.razor. *@
<link rel="stylesheet" href="_content/Majorsoft.Blazor.Components.Inputs/passwordInput.css" />

<PasswordInput @bind-Value="_password"
               MaskCharacter="*"
               MaxLength="20"
               Placeholder="Enter your password" />

@code {
    private string? _password;
}

Configuration

Installation

Majorsoft.Blazor.Components.Inputs is available on NuGet.

dotnet add package Majorsoft.Blazor.Components.Inputs

Use the --version option to specify a preview version to install.

Usage

Add using statement to your Blazor <component/page>.razor file. Or globally reference it into _Imports.razor file.

@using Majorsoft.Blazor.Components.Inputs

MaxLengthInput and MaxLengthTextarea usage

Following code example shows how to use MaxLengthInput component in your Blazor App with model binding on specific OnInput event. So it will enable two way binding between components. You can omit it and use Value directly for one way binding.

Note: using MaxLengthTextarea component basically the same but it will render HTML <textarea>.

<style>
	.countDownText {
		font-size: small;
		color: gray;
	}
	.countDownText.red {
		color: red;
	}
	.countDownText.right {
		width: 100%;
		text-align: right;
	}
</style>

<div class="row pb-2">
	<div class="col-12 col-lg-8 col-xl-5">
		<MaxLengthInput id="maxInput1" class="form-control w-100" placeholder="@($"You can type maximum: {_maxLengthInputAllowed} char(s)")"
						@bind-Value="@_maxLengthInputValue" @bind-Value:event="OnInput"
						MaxAllowedChars="@_maxLengthInputAllowed"
						CountdownTextClass="@_maxLengthInputTextClass"
						OnRemainingCharsChanged="MaxLengthInputRemainingCharsChanged" />
	</div>
</div>

<div>Actual value: @_maxLengthInputValue</div>

@code {
	//MaxLengthInput
	private int _maxLengthInputAllowed = 10;
	private string _maxLengthInputValue = "";
	private string _maxLengthInputTextClass = "countDownText";

	private void MaxLengthInputRemainingCharsChanged(int remainingChars)
	{
		_maxLengthInputTextClass = "countDownText";

		if (_maxLengthInputAllowed * 0.2 >= remainingChars)
		{
			_maxLengthInputTextClass = "countDownText red";
		}
	}
}

MaxLengthInputText and MaxLengthInputTextArea usage

Following code example shows how to use DebounceInputText component with model binding and form validation in your Blazor App.

Note: using MaxLengthInputTextArea component basically the same but it will render HTML <textarea>.

<style>
	.countDownText {
		font-size: small;
		color: gray;
	}
	.countDownText.red {
		color: red;
	}
	.countDownText.right {
		width: 100%;
		text-align: right;
	}
</style>

<EditForm Model="@exampleModel">
	<DataAnnotationsValidator />
	<ValidationSummary />
	<div class="row pb-2">
		<div class="col-12 col-lg-8 col-xl-5">
			<MaxLengthInputText id="maxInput2" class="form-control w-100" placeholder="@($"You can type maximum: {_maxLengthInputTextAllowed} char(s)")"
								@bind-Value="exampleModel.Name"
								MaxAllowedChars="@_maxLengthInputTextAllowed"
								CountdownTextClass="@_maxLengthInputTextTextClass"
								OnRemainingCharsChanged="MaxLengthInputTextRemainingCharsChanged" />
		</div>
	</div>
	<div class="pb-2">
		<button class="btn btn-primary" type="submit">Submit</button>
	</div>
</EditForm>

<div>Actual value: @(exampleModel.Name)</div>

@code {
	//MaxLengthInputText
	private int _maxLengthInputTextAllowed = 10;
	private string _maxLengthInputTextTextClass = "countDownText";

	private void MaxLengthInputTextRemainingCharsChanged(int remainingChars)
	{
		_maxLengthInputTextTextClass = "countDownText";

		if (_maxLengthInputTextAllowed * 0.2 >= remainingChars)
		{
			_maxLengthInputTextTextClass = "countDownText red";
		}
	}

	//Form model
	private ExampleModel exampleModel = new ExampleModel() { Name = "" };
	public class ExampleModel
	{
		[Required]
		[StringLength(10, ErrorMessage = "Name is too long.")]
		public string Name { get; set; }
	}
}
